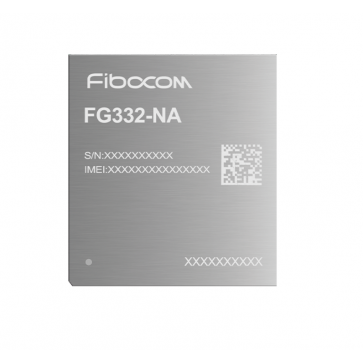

Fibocom FG332-NA 5G NR Module

Fibocom FG332-NA is a 5G Sub-6GHz communication module designed for North America markets. It supports 5G standalone (SA) network architectures to meet mainly for FWA applications.

Fibocom FG332-NA supports 3GPP Release 17, FG332-NA adopts LGA form factor, and sizes 32*29*2.4 mm.

Fibocom FG332-NA is built with rich Internet protocols and integrates multiple industry-standard interfaces, including (UART, USB2.0, USIM). Meanwhile, it supports Multiple operating systems (Linux/Android/Windows).

Fibocom FG332-NA 5G module Specifications:

* Platform: MT T300

* 5G Sub-6: n2/n5/n7/n12/n13/n14/n25/n26/n30/n38/n41(194M)/n48/n66/n70/n71/n77/n78

* LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B30/B66/B71

* LTE TDD: B38/B41/B42/B43/B48

* WCDMA: N/A

* Form Factor: LGA

* Dimensions: 32 X 29 X 2.4mm

* Operating Voltage: 3.3V~4.4V, Typical 3.8V

* Operating Temperatures: -30~+75°C

* Extended Temperatures: -40~+85°C

* AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands

* Antenna: 2(Main +Div)+ 1 (GNSS, optional)

* GNSS: GPS/GLONASS/Beidou/Galileo/QZSS

* Support: FOAT/DFOTA/VoLTE/Audio/eSIM(optional)

* Data rates:
- Max.227Mbps(DL) /Max. 122Mbps(UL)
- LTE Max.150Mbps(DL) / Max.75Mbps(UL)

* Interfaces:
- USB USB2.0 x 1
- PCIe PCIe Gen2
- UART ●
- SPI ●
- UICC X2
- GPIO ●
- SDIO ●
- PCM ●
- SGMII ●

* Support for built-in eSIM(Secure encryption): optional

* Certifications: FCC*/IC*/PTCRB*/Rohs*/HF*/GCF*

* Carriers: TMO*/AT&T*/Verizon*(* = In progress, ** = Planning)
