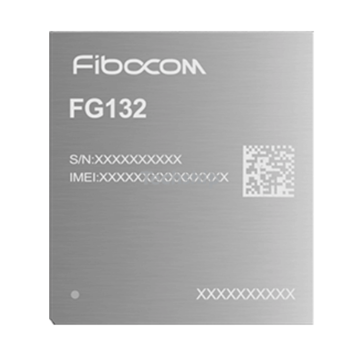

Fibocom FG132-GL 5G Sub-6 R17 RedCap LGA Module

Fibocom FG132-GL is a high-performance 5G Redcap Sub-6 GHz wireless communication module. This module supports 3GPP R17 RedCap technology, offering a maximum downlink speed of 223Mbps and uplink speed of 123Mbps under the 5G RedCap network, maximum downlink speed of 195Mbps and uplink speed of 105Mbps under the LTE network. Fibocom FG132 comes in various sub-models: GL for global operator frequency bands and NA for North American operators. It supports 5G SA networks, backward compatibility with 4G, and caters to 5G private networks and slicing requirements.

Featuring compact LGA packaging at 32*29*2.4mm, FG132 shares a PIN layout compatible with Fibocom NL668 series Cat 4 and MC116 series Cat 1 modules, facilitating seamless 5G/4G product compatibility design.
Positioned for mid-rate IoT markets including industrial gateways, security monitoring, fixed wireless access terminals, vehicle installations, and energy applications.

Fibocom FG132-GL 5G LGA Module Specifications:

* Product type: 5G Redcap Module

* Package: LGA

* Dimension(mm): 30x52x3.1

* Frequency Bands:
Sub-6: N1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/38/40/41/48/66/70/71/77/78
mmWave: NA
LTE Bands: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/30/34/38/39/40/41/42/43/48/66/71
LTE-HPUE: B38/40/41/42/43
WCDMA: NA

* Operation mode: SA

* Antenna: 1T2R

* Operating Voltage: 3.3V~4.3V(Typical 3.8V)

* Operating Temp.: -35°C - +75°C

* Extended Temp.: -40°C - +85°C

* Data rates:
- 5G SA Sub-6 (256QAM)（Mbps): 223(DL) / 123(UL)
- LTE (256QAM)（Mbps）: 195(DL) / 105(UL)

* Functions
Voice: Optional
SMS: Optional
Audio: Optional
FOTA: DFOTA
OS Drivers: Windows/Linux/Android
GNSS: Optional

*Interfaces
SIM ●
USB x1, USB2.0
PCIe ●
UART ●
SPI ●
ADC ●
GPIO ●
SDIO ●
PCM ●
SGMII ●

* Certification
Regulation: ROHS*/HF*/FCC*/GCF*/PTCRB*
Operator: T-Mobile*/Verizon*/AT&T*
