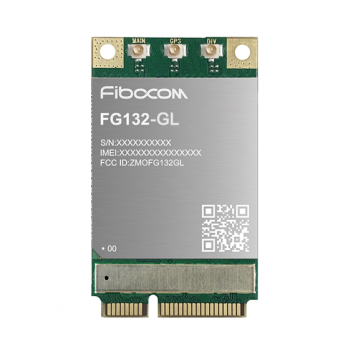

Fibocom FG132-GL Mini PCIe 5G Sub-6 R17 RedCap Module

Fibocom FG132 series is a high-performance 5G RedCap Sub-6GHz wireless communication module. This series supports 3GPP R17 RedCap technology, offering a maximum downlink speed of 223Mbps and uplink speed of 123Mbps under the 5G RedCap network, maximum downlink speed of 195Mbps and uplink speed of 105Mbps under the LTE network. It supports 5G SA networks, backward compatibility with 4G, and caters to 5G private networks and slicing requirements.

Fibocom FG132-GL-00-MiniPCIe shares a standard MiniPCIe PIN layout and supports global frequency bands. Positioned for mid-rate IoT markets including industrial routers, Industrial PC, IP cameras, IoT gateways, fixed wireless access terminals, etc.

Fibocom FG132-GL 5G Redcap Mini PCIe Module Specifications:

* Product type: 5G Redcap module

* Package : Mini PCIe

* Dimension(mm): 30x51x3.7

* Frequency Bands:
Sub-6: N1/2/3/5/7/8/12/13/14/18/20/25/26/28/30/38/40/41/48/66/70/71/77/78
mmWave: NA
LTE Bands: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/30/34/38/39/40/41/42/43/48/66/71
LTE-HPUE: B38/40/41/42/43
WCDMA: NA

* Operation mode: SA

* Antenna: 1T2R

* Operating Voltage: 3.3V~4.3V(Typical 3.8V)

* Operating Temp.: -35°C - +75°C

* Extended Temp.: -40°C - +85°C

* Data rates:
- 5G SA Sub-6 (256QAM)（Mbps): 223(DL) / 123(UL)
- LTE (256QAM)（Mbps）: 195(DL) / 105(UL)

* Functions
Voice: Optional
SMS: Optional
Audio: Optional
FOTA: DFOTA
OS Drivers: Windows/Linux/Android
GNSS: Optional

*Interfaces
SIM ●
USB x1, USB2.0
PCIe ●
UART ●
SPI ●
ADC ●
GPIO ●
SDIO ●
PCM ●
SGMII ●

* Certification
Regulation: ROHS*/HF*/FCC*/GCF*/PTCRB*
Operator: T-Mobile*/Verizon*/AT&T*
