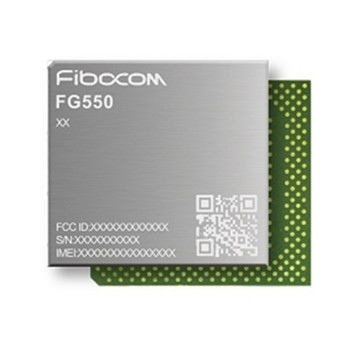

Fibocom FG550-JP 5G Sub-6GHz Module

Fibocom FG550-JP is the Japanese regional variant of the Fx550 5G module series. It is an LGA-packaged module built on the Samsung Exynos Modem platform, specifically designed for high-speed Fixed Wireless Access (FWA) and IoT applications in the Japanese market.

Fibocom FG550-JP 5G Module Specifications:

* Chipset: Samsung Exynos (S5300) with a single-core ARM Cortex-A55 processor (1.5 GHz).

* Form Factor: LGA package (Surface Mount).

* Target market: Japan

* Dimensions: 45.0 mm x 48.0 mm x 2.75 mm.

* Operating Voltage: 3.3V to 4.4V (Typical 3.8V).

* Operating Temperature: -30°C to +75°C (Extended: -40°C to +85°C ).

Network & Data Transmission
------------------------------------------------
* Cellular Standards: 5G NR SA/NSA, 4G LTE-FDD/TDD, and 3G WCDMA.

* 3GPP Release: Release 16 compliant.

* Peak Data Rates:
- 5G NSA: Up to 6.47 Gbps (Download) / 1.25 Gbps (Upload).
- 5G SA: Up to 4.67 Gbps (Download) / 1.25 Gbps (Upload).

* Carrier Aggregation: Supports up to 5CC NR CA in SA mode (200MHz bandwidth) and NR 2CC + LTE 5CC in NSA mode.

* MIMO: Supports 4x4 MIMO for downlink and 2x2 MIMO for uplink.

Frequency Bands
------------------------------------------------
* 5G NR Sub-6GHz:

* 4G LTE: Supports up to Cat. 20 for global compatibility.

* 3G WCDMA: B1, B5, B8.

Interfaces & Additional Features
------------------------------------------------
* Hardware Interfaces: USB 2.0, 2-lane PCIe 3.0, UART, I2C, SPI, and GPIO

* GNSS Support: GPS, GLONASS, BeiDou, Galileo, and QZSS (specifically L1 GPS for EAU variant).

* Software Drivers: Compatible with Linux, Android, and Windows operating systems.

* Enhanced Services: Supports VoLTE, SMS (over IP and NAS), and DFOTA (Delta Firmware Over-the-Air).
