Huawei E5180 LTE WiFi Router Overview

You may be familiar with the Huawei LTE routers; Unlike other 4G Routers, Huawei E5180 is in a special but nice appearance.  The device is called the LTE CPE E5180. It works well with all the network operators in Europe and Asia. And there is an Ethernet-connector in the Huawei E5180, and it is possible to connect VoIP-device easily.

Huawei E5180 4G LTE CPE Specifications
GSM Standards GPRS, EDGE
Data transmission 3G HSDPA, HSPA+, HSUPA
4G Data Transfer LTE to 150 Mbit/s
Receiving / sending SMS Yes
LTE Standards FDD: Band 1, 3, 7, 8, 20 (2600/2100/1800/900/800 MHz), TDD: Band 38 (2600 MHz)
Compatible with 4G LTE operators All Main Network Operators in Europe and Asia
Standard 802.11 b/g/n
type antenna internal
The range of Wi-Fi frequencies 2.4 GHz
Number of connected Wi-Fi devices 32
Data protection AES encryption, TKIP, WEP, WPA-PSK, WPA2-PSK
Ethernet Ports 1 × LAN
The firewall (firewall) Yes
IP filter Yes
UPnP Yes
DHCP-server Yes
Support for IPv6 Yes
VoIP-adapter There, SIP
The number of RJ-11 ports 1
Compatibility Windows XP, Vista, 7, 8, 8.1, Mac OS X 10.7, 10.8, 10.9
Food Adapter
dimensions 70 × 70 × 110 mm
The weight 250 g



Design, size, controls

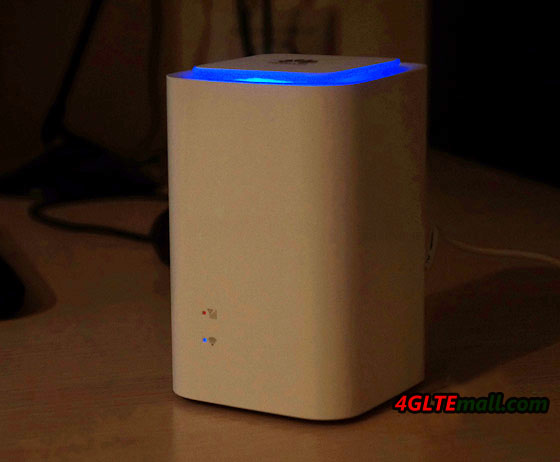

At the beginning, I said that the most interesting thing in the router – it is the appearance, vaguely reminiscent of various things, for example, AirPort Time Capsule. The E5180 is in rectangular Hull form, with greatly smoothed edges. The upper part slightly recessed, and above it stands a large pedestal of frosted white. It has some functional and aesthetic burden: in the first case is a button and the second it is a light blue color. Button has a soft press and the average speed for using is very nice. A short press activates the backlight off, or, and long-term (more than three seconds) – Enables or disables the device itself. The ususal operation is quite convenient.




On one side of the Webcube body, two indicators are located. One on the above is responsible for the mobile network, and the second, just below is for the Wi-Fi network. The second is in blue, and the top is red (in 4G) or blue (in 2G/3G). The glow does not hit in the eye during the day but is quite noticeable at night.


On the reverse side, there are the standard Ethernet-connector and a RJ-11 port for connecting VoIP phones. At the bottom, there is a connector for power plug.


At the bottom of E5180 glued sticker with information about the key access to Wi-Fi network by default, given username and password, as well as the IP-address. In any case, I will write them here in case the sticker is removed or broken.

  • IP:
  • User: admin
  • Password: admin
  • SSID: Huawei-E5180-2DD0
  • Wi-Fi Key: L8J2A871E01 (likely to be different in different devices)


Blow the stick, there is a slot for microSIM-card. The slot is covered by a small plastic flap.


Above the lower platform rises a little rim of padded material similar to rubber. Overall, Huawei E5180 looks great in any interior. The only thing missing is a big angle LED screen. For example, the side indicator is not always clear whether the router is enabled or not, and it is unclear what kind of signal – 3G or 4G to be connected.



Using the E5180 Wi-Fi-router

First, you need to install the SIM card into slot with support for Internet. Next, connect the power cord to the device and plug the adapter into a power outlet. The duration of the initialization is about 30 seconds, not fast. To connect to the E5180, you need to find a WiFi SSID named Huawei-E5180-2DD0 and enter the key / password printed on the underside of the unit. In principle, now you can already use the internet.


After connected to wireless network, the signal reception quality is about the same as a portable router MR-100-2, that is not the best. If you are unsatisfied with the signal, an external antenna should be necessary now, so that the signal gains a little higher. We should also say that you cannot connect an external antenna. Usually, the network mode “jumps” from 3G to 4G and back. However, it is more dependent on how well the operator can “give” network, not on the E5180 router.


With regard to the WiFi coverage range, according to the manufacturer, it is about 250 meters along the line of sight. In practice, I can say that the E5180 is more powerful than Asus RT-N10P (bought only to test the functionality of Wi-Fi in the house). Huawei E5180 router distributes the Internet without problems in the apartment, even with the obstacles in front of him – two reinforced concrete walls.


The official site says that Huawei E5180 router can connect up to 32 devices. I did not have so much devices to real test, but a couple of laptops, three smartphones and a few other gadgets worked tolerably well in the network.



For Huawei E5180 setup, you will need a special application and a smartphone or computer. If in the PC, everything is available on the IP with login and password «admin». Below the screenshot of the WEB-version is for settings.



To configure settings using a smartphone or tablet, there is a free “Huawei HiLink” APP on Google Play. It is very simple and visually displays information about the network and router settings.

HUAWEI E5180 LTE CPE 4G Router (10)



On the positive side, Huawei E5180 4G Router provides a cool, ergonomic design, and the operation on this router is very simple and easy. Another advantage is that the E5180 cube could work with all main European and Asia telecom operators in the fourth-generation network, and it’s easy setup. The only shortcomings should be the absence of the 5 GHz band for WiFi and missing of external antenna connector. For most users, the Huawei E5180 is good enough for common daily use.

Huawei E5180 4G LTE Router Review

Huawei is always the leading the main stream of 4G LTE technology. Now we get a new Huawei 4G LTE router with new technology and design. From the appearance, we can see Huawei had paid much attention on the design of this new router. The router parts are in a white square cabinet with integrated LED lighting. Like Huawei B593, Huawei E5180 is also a LTE category 4 gateway, which could support peak download speed to 150Mbps. And up to 32 wireless users could access internet via E5180.

Huawei E5180 Specifications:



Manufacturer & Model: Huawei E5180
Technologies: LTE (4G), UMTS (3G) GSM (2G)
Frequencies: * LTE: 800/1800/2600 * UMTS: 850/900/1900/2100* GSM: 850/900/1800/1900
Maximum speed: * LTE: 150 Mbit/s down, 50Mbit/s up* UMTS: 42.2 Mbit/s down, 5.76 Mbit/s up (when using DC-HSPA+)* GSM: 384 kbit/s (when using EDGE )
WIFI 802.11b/g/n, up to 32 devices, up to 4 SSIDs
Software: Firmware Version:
Others: Ethernet LAN connection 100 MBit/s, RJ-11 telephone connection, MicroSIM


Huawei E5180 Appearance and Operation

The Huawei E5180 is packed in a small box including the power adapter and short LAN cable. Usually, the LTE routers are significantly large. At first glance, Huawei E5180 looks very small and light. The workmanship is good, only the port for the MicroSIM card to complain about, because this makes it impossible to use a NANO sim card with adapter. The LED lighting on top of the Huawei E5180 is a beautiful design element and overall very successful. With a short press on the Huawei logo you can see the lights on and off, alternatively you can control the LED via the web interface. A long press to switch the entire router could power on or off.

The operation of Huawei E5180 is very simple. Normally, it is sufficient to simply insert the SIM card, then the device should automatically connect to the Internet. The wireless network is encrypted from the factory, the password is required for network connection, and it’s printed on the label at the bottom of the E5180. The operation and configuration of Huawei E5180 could be finished via a web interface in the browser. To access the web interface, you have to land the address, and then enter your username and password. The web interface is well structured and easy to use, also the speed is OK, the load times of each menu are very short. On the home page all important for the connection information is displayed, including about the signal strength, the consumed amount of data separated into uplink and downlink as well as the time spent online.


Huawei E5180 Network mode and Telephone

Huawei E5180 can use all of the current cellular standards. It can work well in LTE, UMTS and GSM networks. On LTE network, E5180 could support peak download speed to 150Mbps. The wireless module in Huawei E5180 works exclusively in the 2.4 GHz frequency band, the area around 5 GHz is not supported. The test showed that my MacBook Air has connected to a maximum of 144 Mbit/s to the router, despite a distance of only 2 meters between the two devices. And a maximum of 32 devices can be connected simultaneously.

The RJ-11 connector for an Analog phone is on the back of Huawei E5180, and it is available only for voice calls over the GSM or UMTS network, for VoIP, there is the web interface requiring no settings. In the test, with a simple analog phone call, the quality is good. Once a call is received on the SIM card, the connected phone is ringing reliably.




Huawei E5180 is without any doubt one of the best LTE routers on the market. If you are looking for a good-looking router, Huawei E5180 would be a perfect option. However, there is No LTE Cat6, no 5 GHz WLAN, no Gigabit LAN, no connectors for external antennas, no DECT and no USB – these are the biggest criticism points to the router.
