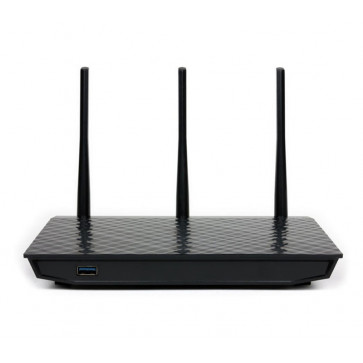

Asus RT-N18U N600 Gigabit WiFi Router

Asus RT-N18U features top-of-the-line hardware specifications. An 800MHz processor with high clock speed delivers fast and responsive USB and WAN to LAN performance; while TurboQAM™ technology raises the 2.4 GHz band speed from 450 Mbps to 600 Mbps for a 33% boost. 128MB flash and 256MB RAM ensure a massive data pipeline of up to 300,000 data sessions and multitasking capability, making it perfect for gaming or high-load network environments. The energy-efficient ARM-based CPU reduces power consumption to even help you save on the bills. In addition, ASUS AiRadar intelligently strengthens wireless connectivity using universal beamforming, high power amplification and exclusive ASUS RF fine-tuning for a 150% increase in coverage1 , so even legacy 802.11b/g/n clients can benefit from this technology.

Asus RT-N18U also incorporates more user-friendly and intuitive software. With the ASUSWRT interface, you can easily set up the router within 30 seconds, or switch RT-N18U between its various modes. You can optimize speed with the built-in Smart QoS function, or turn the USB storage attached to the router into a personal cloud with ASUS AiCloud.

At the heart of RT-N18U is a powerful but energy-efficient ARM Cortex-A9 processor running at 800MHz that ensures fast and responsive performance. The 128MB of Flash memory and 256MB of DDR3 RAM further enhance multitasking performance and allow up to 300,000 concurrent data sessions — making RT-N18U ideal for multimedia applications such as HD video streaming, online gaming and file sharing.

Asus RT-N18U Specifications:

* Product type：WiFi Router/AP/Range Extender

* Coverage: Large homes

* Network Standard：IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6

* Data Rate:
- 802.11n: up to 450 Mbps
- 802.11n TurboQAM: up to 600 Mbps

* Antenna:
- Detachable antenna x 3

* Transmit/Receive
- MIMO technology
- 2.4 GHz 3 x 3

* Operating Frequency: 2.4G Hz

* Encryption: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, WPS support

* Firewall & Access Control
- Firewall：SPI intrusion detection,DoS protection
- Access control：Parental control, Network service filter, URL filter, Port filter

* Management: UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Universal Repeater, System Event Log

* WAN Connection Type
- Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- WAN Bridge support
- Multicast Proxy support
- Multicast Rate Setting support

* Ports
- RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
- RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
- USB 2.0 x 1
- USB 3.0 x 1

* Features
- Airtime Fairness
- SmartQoS
> WMM
> User definable rules for IP/MAC/Port
> Upload and download bandwidth management
> ACK/SYN/FIN/RST/ICMP with highest priority
- Parental Control
- Guest Network: 2.4 GHz x 3
- VPN server: IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
- VPN client: PPTP client, L2TP client, OpenVPN client
- Mac OS Backup
- Enhanced media server (AiPlayer app compatible)
> Image: Jpeg
> Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
> Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
- AiCloud personal cloud service
- 3G/4G data sharing
- Printer Server
> Multifunctional printer support (Windows only)
> LPR protocol support
- Download Master
> Support bt, nzb, http, ed2k
> Support encryption, DHT, PEX and magnet link
> Upload and download bandwidth control
> Download scheduling
- AiDisk file server： Samba and FTP server with account management
- Dual WAN
- IPTV support
- Roaming Assist

* Button: WPS Button, Reset Button, Power Button

* LED Indicator
- Power x 1
- Wi-Fi x 1
- LAN x 1
- WAN x 1
- USB x 2

* Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 12 V with max. 1.5 A current

* OS Support
- Windows 10
- Windows 8.1
- Windows 8
- Windows 7
- Windows Vista
- Windows 2000
- Windows ME
- Windows XP
- Windows Server 2003
- Windows Server 2008
- Mac OS X 10.1
- Mac OS X 10.4
- Mac OS X 10.5
- Mac OS X 10.6
- Mac OS X 10.7
- Mac OS X 10.8
- Mac OS X
- Linux Kernel (Support Ubuntu only)
- Linux

* Operation mode
- Wireless router mode
- Range extender mode
- Access point mode
- Media bridge mode

* Dimensions: 207 x 150 x 37 ~ mm (WxDxH)(Without Bezel)

* Weight: 320g

* Package Content
- 1 x RT-N18U 2.4GHz 600Mbps High Power Router
- 1 x RJ-45 cable
- 1 x Power adapter
- 1 x QSG
- 1 x Warranty card
