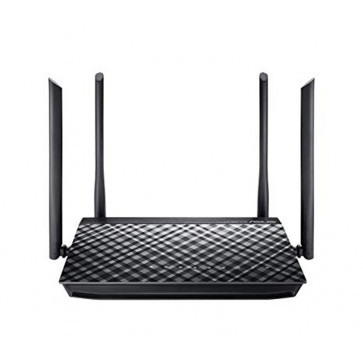

Asus RT-AC1200G+ RT-AC1200G+ AC1200 Dual Band WiFi Router

Asus RT-AC1200G+ is an AC1200 Dual Band WiFi Router with four 5dBi antennas and Parental Controls, smooth streaming 4K videos from Youtube and Netflix. It supports 802.11ac and concurrent dual-band connectivity delivers up to 1167 Mbps data rate. The 4 fixed 5dBi antennas and AiRadar beamforming technology strengthens wireless coverage. Asus RT-AC1200G+ router provides multi-purpose USB 2.0 ports for 3G/4G, printer, file sharing and media streaming.

Asus RT-AC1200G+ router specifications:

* Product type：WiFi Router

* Coverage: Medium homes

* Network Standard：IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

* Product Segment: AC1200 enhanced AC performance 300+867 Mbps

* Data Rate
- 802.11n: up to 300 Mbps
- 802.11ac: up to 867 Mbps

* Antenna:
- External 5 dBi antenna x 4(*Antenna type will differ according to local regulations and requirement in each country)

* Memory: 128MB Flash, 512MB RAM

* Transmit/Receive
- MIMO technology
- 2.4 GHz 2 x 2
- 5 GHz 2 x 2

* Processor：BCM47189+ BCM43217

* Operating Frequency: 2.4G Hz, 5 GHz

* Encryption: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support

* Firewall & Access Control：
- URL Blocking
- MAC Filter
- URL Filter
- Enable LAN to WAN Filter
- Parental Control Web filter

* Management: UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

* WAN Connection Type:
- Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
- Multicast Proxy support
- Multicast Rate Setting support

* Ports
- RJ45 for 10/100/1000 BaseT for WAN x 1
- RJ45 for 10/100/1000 BaseT for LAN x 4
- USB 2.0 x 1

* Features
- SmartQoS
> WMM
> User definable rules for IP/MAC/Port
> Upload and download bandwidth management
> ACK/SYN/FIN/RST/ICMP with highest priority
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN client : PPTP client, L2TP client
Enhanced media server (AiPlayer app compatible)
> Image: Jpeg
> Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
> Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
3G/4G data sharing

* Button: WPS Button, Reset Button, Power Button

* LED Indicator
- Power x 1
- LAN x 4
- WAN x 1
- Wi-Fi x 2
- USB x 2

* Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 12 V with max. 2 A current

* OS Support
- Windows 10
- Windows 8
- Windows 7
- Windows Vista
- Windows 2000
- Windows ME
- Windows XP
- Mac OS X 10.1
- Mac OS X 10.4
- Mac OS X 10.4
- Mac OS X 10.5
- Mac OS X 10.6
- Mac OS X 10.7
- Mac OS X 10.8
- Linux Kernel (Support Ubuntu only)

* Operation mode
- Wireless router mode
- Access point mode

* Dimensions: 207 x 148 x 35 ~ mm (WxDxH) (Without Bezel)

* Weight:
