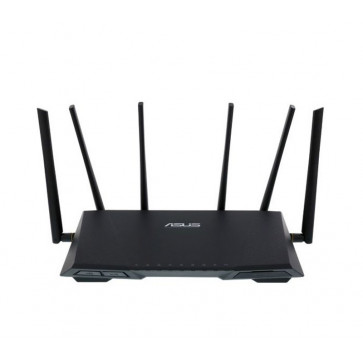

Asus RT-AC3200 AC3200 Tri-Band Gigabit WiFi Router

Asus RT-AC3200 is a tri-band 802.11ac router featuring Tri-Band Smart Connect, an incredible new feature that automatically maximizes the performance of your wireless devices. With the super-fast combined data rate of 3200Mbps (2600Mbps on the two 5 GHz bands plus 600Mbps on the 2.4GHz band), RT-AC3200 allows every device to work at full speed, ensuring lag-free online gaming, silky-smooth 4K UHD video streams, and effortless downloading. Add to this superb coverage and advanced security, and you'll see why RT-AC3200 takes your network to the next level!

Asus RT-AC3200 uses two 802.11ac networks, each with a three transmit, three receive (3x3) antenna configuration. This is made possible by its six external high performance antennas, and allows more devices to connect faster with better stability.

Asus RT-AC3200 Router Specifications:

* Product type：WiFi Router

* Coverage: Large homes

* Network Standard：IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

* Product Segment: AC3200 ultimate AC performance 600+1300+1300 Mbps

* Data Rate
- 802.11n : up to 450 Mbps
- 802.11n TurboQAM : up to 600 Mbps
- 802.11ac : up to 1300 Mbps

* Antenna:
- External antenna x 6

* Memory: 128MB Flash, 256MB RAM

* Transmit/Receive
- MIMO technology
- 2.4 GHz 3 x 3
- 5 GHz-1 3 x 3
- 5 GHz-2 3 x 3

* Wi-Fi Technology
- Beamforming：standard-based and universal
- 256QAM high data rate
- 20/40/80 MHz bandwidth

* Operating Frequency: 2.4G Hz, 5 GHz

* Encryption: 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, Radius with 802.1x, WPS support

* Firewall & Access Control：
- Firewall：SPI intrusion detection,DoS protection
- Access control：Parental control, Network service filter, URL filter, Port filter

* Management: UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

* WAN Connection Type/Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

* Ports
- RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1
- RJ45 for 10/100/1000/Gigabits BaseT for LAN x 4
- USB 2.0 x 1
- USB 3.0 x 1

* Features
- Airtime Fairness
- Smart Connect
- Traffic Analyzer
- Adaptive QoS
- AiProtection
- Parental Control
- Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
- VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
- VPN client : PPTP client, L2TP client, OpenVPN client
- Mac OS Backup
- Enhanced media server (AiPlayer app compatible)
> Image : Jpeg
> Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
> Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
- AiCloud personal cloud service
- 3G/4G data sharing
- Printer Server
> Multifunctional printer support (Windows only)
> LPR protocol support
- Download Master
> Support bt, nzb, http, ed2k
> Support encryption, DHT, PEX and magnet link
> Upload and download bandwidth control
> Download scheduling
- AiDisk file server: Samba and FTP server with account management
- Dual WAN
- IPTV support
- Roaming Assist

* Button: WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

* LED Indicator
- Power x 1
- Wireless x 2
- WAN x 1
- LAN x 4
- WPS x 1

* Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 19 V with max. 2.37 A current

* OS Support
- Windows 10 86x64
- Windows 8.1 86x64
- Windows 8 86x64
- Windows 7 86x64
- Windows Vista 86x64
- Windows 2000 86x64
- Windows ME
- Windows XP 86x64
- Windows Server 2003
- Windows Server 2008
- Mac OS X 10.1
- Mac OS X 10.4
- Mac OS X 10.5
- Mac OS X 10.6
- Mac OS X 10.7
- Mac OS X 10.8
- Mac OS X
- Linux Kernel (Support Ubuntu only)
- Linux

* Operation mode
- Wireless router mode
- Access point mode
- Media bridge mode

* Dimensions: 11.41 x 7.40 x 2.28 inch (WxDxH) ~ cm

* Weight:

* Package Content
- RT-AC3200 Tri-band Gigabit Router
- RJ-45 Cable
- Power Adapter
- Quick Start Guide
- Warranty Card
- Support CD (User manual & Utility software)
