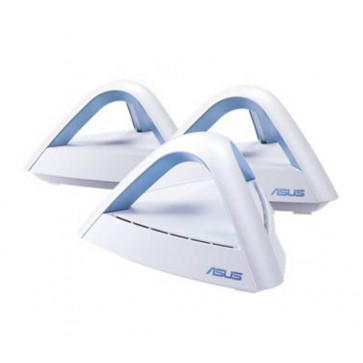

Asus Lyra Trio AC1750 Whole-Home Mesh WiFi System(3-pack)

Asus Lyra Trio is is a three-piece whole-home Wi-Fi system designed for multilevel residences of up to 5,400 square feet. It consists of three cool-looking nodes, one of which serves as a primary router, that use mesh technology to communicate with each other and to provide seamless roaming throughout your home using a single SSID and password.

Asus Lyra Trio is a 3x3 dual-band system powered by a Qualcomm 750MHz CPU, 128MB of RAM, and 32MB of flash memory. It's an AC1750 system which means it can achieve maximum speeds of 450Mbps on the 2.4GHz band and 1,300Mbps on the 5GHz band. It uses band-steering to automatically select the best radio band based on available bandwidth.

Highlights:

* Banish WiFi Dead Zone — Dual band, tri-hub mesh wifi system with unique antenna placement delivers strong WiFi to every corner of your home.

* Fast & Smooth Connections, Always — 3x3 MIMO technology and seamless roaming deliver superior WiFi speed and automatically connect you to the best signal, anywhere in the home.

* Always Up-to-date Protection — The lifetime free cloud-based security powered by Trend Micro? makes sure your privacy on connected devices is protected.

* Parental Controls — URL filter and scheduling allow you to protect your family from inappropriate content and unhealthy Internet usage behavior.

* AiMesh Supported – Mix and match Lyra Trio with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system

Asus Lyra Trio AC1750 Specifications:

* Product type：Mesh WiFi System

* Coverage: Large homes

* Network Standard：IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

* Product Segment: AC1750 superior AC performance 450+1300 Mbps

* Data Rate
- 802.11a: 6,9,12,18,24,36,48,54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6,9,12,18,24,36,48,54 Mbps
- 802.11n: up to 450 Mbps
- 802.11ac: up to 1300 Mbps

* Antenna: External antenna x 3

* Memory: 32 MB Flash, 128 MB RAM

* Transmit/Receive
- MIMO technology
- 2.4 GHz 3 x 3
- 5 GHz 3 x 3

* Operating Frequency: 2.4G Hz, 5 GHz

* Encryption: WPA2-PSK

* Management: DHCP, DDNS, Port Forwarding, System Event Log

* VPN Support
- IPSec Pass-Through
- PPTP Pass-Through
- L2TP Pass-Through
- OpenVPN server
- PPTP client
- L2TP client
- OpenVPN client

* WAN Connection Type: Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

* Utilities: Lyra App

* Ports
- RJ45 for BaseT for WAN x 1
- RJ45 for BaseT for LAN x 1

* Features
- Smart Connect
- Traditional QoS
- AiProtection Classic
- Parental Control
- Guest Network: 1
- VPN server: IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, OpenVPN Server
- VPN client: PPTP client, L2TP client, OpenVPN client
- VPN Pass-Though:IPSec, PPTP, L2TP
- Bandwidth Limiter

* Button: Reset Button, Pair Button

* Power Supply
- AC Input:100-240V~ 50/60Hz 0.6A
- DC Output: 12V with max. 1.5A current

* OS Support
- Windows 10
- Windows 10 64-bit
- Windows 8.1
- Windows 8
- Windows 7
- Mac OS X 10.1 to 10.12
- Linux

* Dimensions: 135.1 x 123.2 x 77.9 ~ cm (Without Bezel)

* Weight: 198.9g per hub

* Package Content
- Lyra Trio Hubs
- Ethernet Cable X1
- Power Adapters
- Quick Start Guide
- Warranty Card
