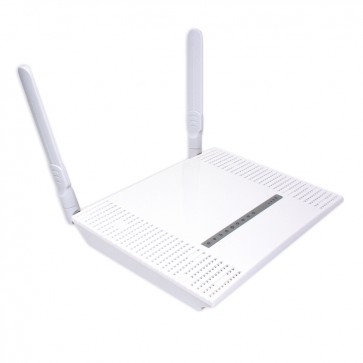

ZOOM T3200-C22 4G LTE Wireless Router

ZOOM T3200-C22 is 4G wireless router for indoor use supporting LTE-TDD/FDD-LTE/TD-CDMA/GSM multi-mode networks. With MIMO technology, the T3200-C22 could support 802.11b/g/n with peak transmission speed up to 300mbps. Other terminals could connect to the WLAN network for high LTE speed surfing via cable or wirelessly. The T3200-C22 could be used for many scenarios, such as SOHO, office, Coffee bar, home or exhibition center etc..

ZOOM T3200-C22 CPE Features:

* Enjoy 4G high speed surfing

* Support LTE-TDD/FDD-LTE/TD-CDMA/GSM multi-mode networks

* Support 802.11b/g/n, MIMO

* Support up to 32 wireless terminals simultaneously

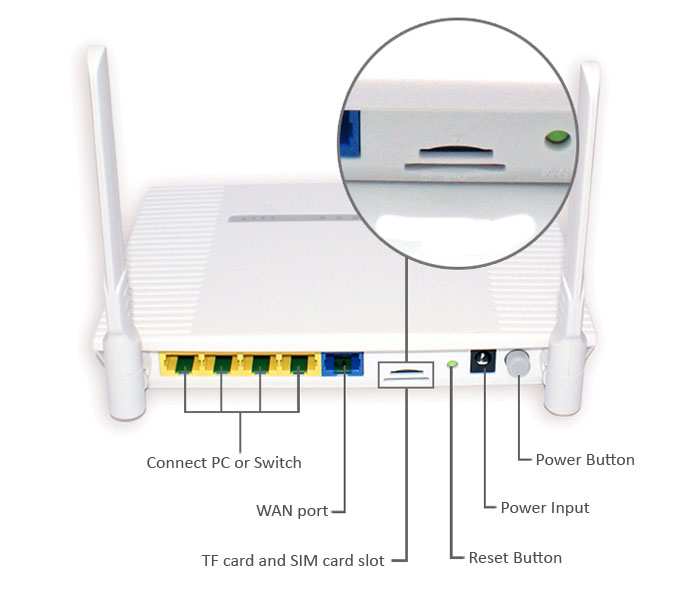

* Interfaces: 1 x TF card, 1 x WAN port, 4 x LAN port

* LTE Cat4 peak download speed to 150mbps

ZOOM T3200-C22 LTE Router Hardware Specifications:

* Processor: MIPS24KEc,580MHz

* FLASH + DDR: 16MB SPI FLASH + 128MB DDR2

* Ethernet ports: 1 x WAN port, 4 x LAN ports, 10/100 BASE-T, Support MDI/MDIX

* Support TDD-LTE/TD-SCDMA/GSM, LTE Cat4, Max download speed to 150Mbps

* WLAN: 802.11b/g/n, Max speed to 300Mbps

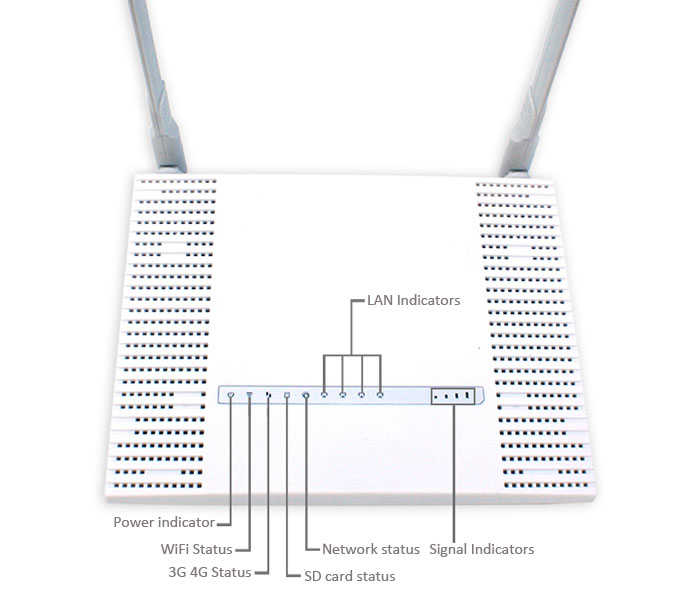

* Indicators:

- 1 x power indicator
- 1 x WiFi indicator
- 1 x LTE signal strength indicator
- 1 x TF card status indicator
- 1 x 3G/4G DL/UL indicator
- 4 x LAN port indicators
- 1 x WAN port indicator

* SIM card slot: 1 x standard SIM/USIM card slot, size 25mm x 15mm

* Buttons: 1 x power button, 1 x Reset button (Long press to reset the device to factory default)

* Power: DC 12V/1A

* * Power Consumption: < 10W

* Dimensions: 180mm x 140mm x 29.5mm

* Weight: < 200g

* * Operating temperature: –10°C to +50°C

* Storage temperature: –40°C to +80°C

* Humidity: 5% to 95%

ZOOM T3200-C22 4G Router Technical Specifications:

* * Network frequency bands:

- LTE-FDD: Band 1 and Band 3
- LTE-TDD: Band 38, 39, 40, 41
- TD-SCDMA: Band 34 and Band 39
- GSM: Band 3/Band 2/Band 8

* Transmit power

- LTE-FDD: Band 1(+22dBm),Band 3(+22dBm)
- LTE-TDD: Band 38(+23dBm), Band 39(+23dBm), Band 40(+23dBm), Band 41(+23dBm)
- TD-SCDMA: Band 34/39(+24dBm)
- GSM: Band 8(+33dBm), Band 2(+33dBm), Band 3(+30dBm)

* Maximum Speed:

- LTE-FDD: DL 150Mbit/s, UL 50Mbit/s @20MHz BW
- LTE-TDD: DL 150Mbit/s, UL 50Mbit/s @20MHz BW
- TD-SCDMA: TD-SCDMA/HSDPA 2.8Mbit/s, TD-SCDMA/HSUPA 2.2Mbit/s
- GSM: EDGE 384kbit/s(UL),128kbit/s(DL)

* 3GPP Release:

- LTE protocol: Rel.9
- TD-SCDMA protocol: Rel.9

* GPRS level: level 12

* Antenna: external high gain antenna

ZOOM T3200-C22 LTE Router WLAN Specifications:

* WLAN protocol: 802.11b/g/m(2*2:2)

* Working frequency: 2.4000GHz~2.4835GHz

* Max Transimit Power: 802.11n(19dBm±2dBm (2x2)

* Receiver sensitivity: 802.11n(-64dBm)(65Mbit/s)

* Max speed: 300Mbps(HT40)/144.4Mbps(HT20)

* Max supported users: 32

* Antenna: built-in antenna
