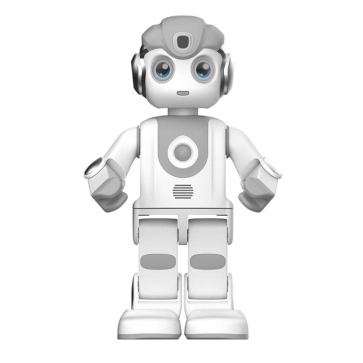

UBTECH Alpha Mini Humanoid Robot

UBTECH Alpha Mini is a highly portable, AI-driven humanoid robot designed for education and companionship. It features a compact design with expressive LCD eyes and advanced motion capabilities powered by 14 high-precision servo motors.

Physical & Motion Specifications
-----------------------------------------------
* Dimensions: 245 mm (H) × 149 mm (W) × 112 mm (D).

* Weight: 700g (including battery).

* Degrees of Freedom (DOF): 14 total joints (3 in the head, 4 in the hands, 1 in the waist, and 6 in the legs).

* Materials: Constructed from aluminum and ABS + PC polycarbonate housing.

Compute & Perception
-----------------------------------------------
* Processor: 8-core MT6750V/C (up to 1.5GHz) with an ARM Mali-T860 MP2 GPU.

* Memory & Storage: 2GB DDR3 RAM and 16GB ROM.

* Camera: 13-megapixel HD camera with autofocus for facial recognition and object detection.

* Display: Dual 1.22-inch TFT LCD screens (240x240 resolution) used to display colorful emotions and expressions.

* Sensors: Includes a distance sensor (TOF IR), acceleration sensor, gyroscope, and touch sensors on the head and body.

Audio & Connectivity
-----------------------------------------------
* Audio: Equipped with a 4-microphone array for voice interaction/source positioning and dual-channel 0.8W stereo speakers.

* Networking: Supports 2.4GHz/5GHz Wi-Fi (802.11a/b/g/n), Bluetooth 4.2, and 4G LTE cellular connectivity via a Nano SIM card.

* GPS: Built-in GPS for location tracking and navigation.

Power & Operating System
-----------------------------------------------
* Battery: 3.85V, 4060mAh Li-polymer battery with a typical recharging time of 3 hours.

* Operating System: Runs on Android 7.0.

* Programmability: Supports graphical coding (Scratch-based) and is programmable via iOS, Android tablets, or Windows PC.
