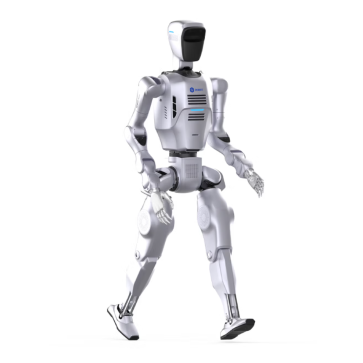

DOBOT ATOM Humanoid Robot

DOBOT Atom is a full-size humanoid robot designed for industrial and research applications, officially launched for global delivery in June 2025. It is noted for its ability to combine dexterous manipulation with an energy-efficient straight-knee walking mechanism.

Key Technical Specifications
-----------------------------------------------
* Height: ≈1650 mm (65 inches)

* Weight: ≈58–62 kg (without hands)

* Degrees of Freedom (DoF) : Up to 41 total (including two 6-DoF dexterous hands)

* Arm Payload: 3.5 kg per arm

* Positioning Accuracy: ±0.05 mm (repetitive positioning)

* Maximum Speed: 1.5 m/s (arm end speed & walking speed)

* Battery Life: ≈2 hours (1-hour recharge time)

Core Capabilities & Components
-----------------------------------------------
* Dexterity: Features a Neuro-Driven System (NDS) and high-frequency (200 Hz) servo control to enable tasks like electronics soldering and fine calibration.

* Locomotion: Its Anthropomorphic Walking System (AWS) uses a straight-knee gait that reduces energy consumption by approximately 42% compared to standard bipedal robots.

* AI & Computing: Powered by an onboard 1500 TOPS AI module (Intel i9 + GPU with 16GB VRAM) for real-time edge computing and adaptation to unstructured environments.

* Sensing: Equipped with a comprehensive perception suite, including Intel RealSense D455 depth cameras, Full HD binocular cameras, 3D LiDAR, and 360° microphones.
