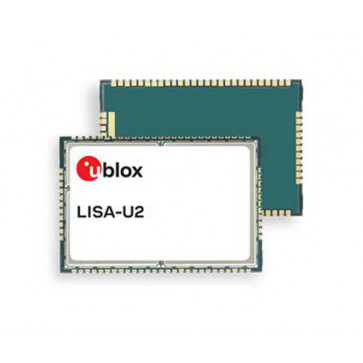

u-blox LISA-U200 3G UMTS/HSPA Cellular Module
* HSPA/GSM module for global coverage
* 7.2 Mbit/s DL, 5.76 Mbit/s UL
* Easy migration between u-blox 2G, 3G and 4G modules
* supports eCall, ERA-GLONASS, CellLocate indoor positioning, and GNSS/A-GNSS integration
Availability: In stock
u-blox LISA-U200 is a 3G UMTS/HSPA Module and features low power consumption and HSUPA category 6, HSDPA up to category 14, GPRS/EDGE up to class 33 data transmission with voice capability. It also combines baseband, RF transceiver, power management unit, and power amplifier in a single, easy-to-integrate solution.
u-blox LISA-U200 module is complete, fully qualified and certified solutions, which reduces cost and enables short time to market. They are ideally suited to M2M applications such as: mobile internet terminals and applications, car infotainment and telematics, Automatic Meter Reading (AMR), Remote Monitoring Automation and Control (RMAC), surveillance and security, road pricing, asset tracking, fleet management, anti-theft systems, and Point of Sales (PoS) terminals.
u-blox LISA-U200 Specifications and features:
* HSPA/GSM module HSPA 6-band
* Target: Global
* Support 3G UMTS Bands 800, 850, 900, 1700, 1900, 2100MHz
* Data rates: 7.2 Mbit/s DL, 5.76 Mbit/s UL
* Support 2G GSM Quad-Band
* Digital audio x 2
* Positioning (for CEL products): AssistNow, CellLocate, eCall / ERA-GLONASS, GNSS via Modem
* Host-based module
* Interfaces:
- UART x 1
- USB x 1
- SPI x 1
- DDC (I2C compliant) x 1
- GPIO x 14
* Minimum power supply: 3.3V
* Maximum power supply: 4.4V
* Maximum temperature: 85°C
* Minimum temperature: -40°C
* Size: 22.4 x 33.2 x 2.6mm
* Features:
- FW update via serial interface
- Jamming detection
- Antenna supervisor
- FOTA according to CTCC/CMCC
- Dual stack IPv4/IPv6
- Embedded FTP/HTTP/SMTP
- Embedded SSL
- Embedded TCP/UDP
* Markets: Automotive & Transport, Industry, Smart Cities, Healthcare, Retail, Smart Home & Buildings
