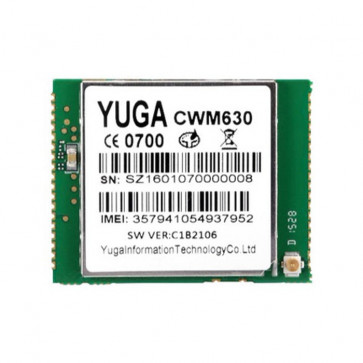

Yuga CWM630 3G HSDPA/UMTS LCC Card

Yuga CWM630 module specifications：

* Form factor: LCC

* Operating band
- UMTS: Quad band,850/900/1900/2100MHz
- HSDPA: Quad band,850/900/1900/2100MHz
- GSM/GPRS/EDGE: Quadband,850/900/1800/1900MHz

* Max transmit power
- Class 4 (+33dBm ±2dB) for EGSM/GPRS 850
- Class 4 (+33dBm ±2dB) for EGSM/GPRS 900
- Class 1 (+30dBm ±2dB) for GSM/GPRS 1800
- Class 1 (+30dBm ±2dB) for GSM/GPRS 1900
- Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD BdI
- Class 3 (+24dBm +1/-3dB) for UMTS 1900, WCDMA FDD BdII
- Class 3 (+24dBm +1/-3dB) for UMTS 900, WCDMA FDD BdVIII
- Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD BdV

* UMTS services

- HSDPA data rate – 3.6 Mbps DL / 384 Kbps UL
- PS data rate – 384 kbps DL / 384 kbps UL
- CS data rate – 64 kbps DL / 64 kbps UL

* EDGE/GPRS/GSM services

- EDGE: Class 12,236.8 kbps UL / 236.8 kbps DL
- GPRS: Multi-slot Class 12,53.6 kbps UL / 53.6 kbps DL

* Full PBCCH support

* Mobile Station Class B

* Coding Scheme 1 – 4

* CSD: V.110, RLP, non-transparent, 14.4 kbps

* AT command: Support the standard AT command set and YUGA extended AT command set

* Voice services: Support FR,EFR,HR and AMR speech coding

* Short Message Services
- Supports GSM/WCDMA short message based on the CS domain
- Supports WCDMA/EGPRS short message based on the PS domain

* Other features: Built-in TCP/IP protocol stack

* Operating voltage: 3.3~4.0V,recommeded values:3.7V

* Operating current
- Shutdown:<50uA
- Sleeping:<3mA
- Max average:1000mA

* Operating System
- Windows 2000
- Windows XP 32/64
- Windows Vista 32/64
- WinCE
- Linux

* Size: 39.5mm×31mm×2.6mm

* Weight: 20g

* OperatingTemperature
- Normal -30℃ ~ +70℃(fully parametric)
- Extended -40℃ ~ +85℃(functional)
- Storage -55℃ ~ +125℃

* Humidity: 5% ~ 95%
