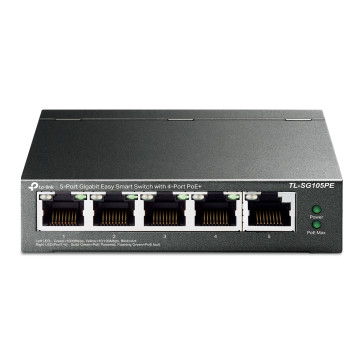

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

TP-Link TL-SG105PE Smart Switch Specifications:

HARDWARE FEATURES
----------------------------------------------------------------
* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

* Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

* Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

* Fan Quantity: Fanless

* Power Supply: External Power Adapter (Output: 53.5 VDC/1.3 A)

* PoE Ports (RJ45) Standard:
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

* Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)

* Max Power Consumption：
4.5 W (with no PD connected)
75.2 W (with 65 W PD connected)

* Max Heat Dissipation:
15.4 BTU/h (with no PD connected)
256.3 BTU/h (with 65 W PD connected)

PERFORMANCE
----------------------------------------------------------------
* Switching Capacity: 10 Gbps

* Packet Forwarding Rate: 7.44 Mpps

* MAC Address Table: 2K

* Packet Buffer Memory: 1.5Mb

* Jumbo Frame: 16 KB

SOFTWARE FEATURES
----------------------------------------------------------------
* Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

* L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode

* VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

* Management
Web-based GUI
Easy Smart Configuration Utility

* Transfer Method: Store and Forward

OTHERS
----------------------------------------------------------------
* Certification: FCC, CE, RoHS

* Package Contents
TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet

* System Requirements: Microsoft® Windows® for Utility Software

* Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
