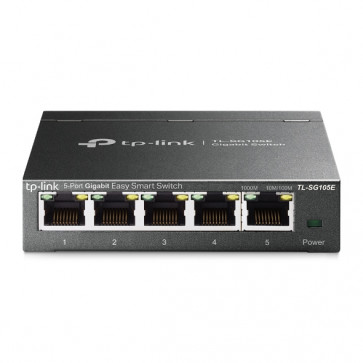

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

TP-Link TL-SG105E Switch Highlight Features:

* 5 10/100/1000Mbps RJ45 ports

* Plug and play, with no configuration required

* Durable metal casing of superior quality and professional appearance

* Intelligent management via a web user interface and downloadable utility

* Green technology reduces power consumption

TP-Link TL-SG105E Switch Specifications:

HARDWARE FEATURES

* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

* Interface
• 5 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

* Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

* Fan Quantity: Fanless

* Power Supply:
External Power Adapter (Output: 5 VDC/ 0.6 A)

* Max Power Consumption：2.82 W (220 V/ 50 Hz)

* Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm)

* Max Heat Dissipation: 9.62 BTU/h

PERFORMANCE

* Packet Forwarding Rate: 7.4Mpps

* MAC Address Table: 2K

* Packet Buffer Memory: 1Mb

* Jumbo Frame: 16 KB

SOFTWARE FEATURES

* Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

* L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

* VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

* Transfer Method: Store and Forward

OTHERS

* Certification: FCC, CE, RoHS

* Package Contents
TL-SG105E
Power Adapter
Installation Guide
Rubber Feet

* System Requirements: Microsoft® Windows® for running Utility

* Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
