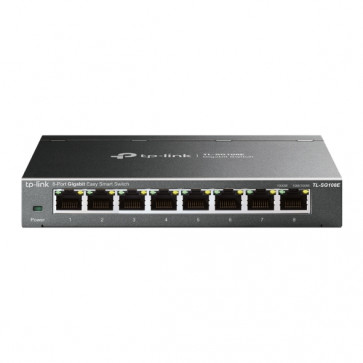

TP-Link TL-SG108E 8-Port Gigabit Easy Smart Switch
* TP-Link Gigabit Desktop Switch
* 8 10/100/1000Mbps RJ45 ports
* Green technology reduces power consumption
* Intelligent management via a web user interface and downloadable utility
* Plug and play, with no configuration required
Availability: In stock
TP-Link TL-SG108E Switch Highlight Features:
* 8 10/100/1000Mbps RJ45 ports
* Plug and play, with no configuration required
* Durable metal casing of superior quality and professional appearance
* Intelligent management via a web user interface and downloadable utility
* Green technology reduces power consumption
TP-Link TL-SG108E Switch Specifications:
HARDWARE FEATURES
* Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
* Interface
• 8 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
* Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
* Fan Quantity: Fanless
* Power Supply:
External Power Adapter(Output: 5 VDC/ 0.6 A)
* Max Power Consumption:2.7W
* Dimensions ( W x D x H ): 6.2 x 4.0 x 1.0 in.(158 x 101 x 25 mm)
* Max Heat Dissipation: 9.3 BTU/h
PERFORMANCE
* Switching Capacity: 16 Gbps
* Packet Forwarding Rate: 11.9Mpps
* MAC Address Table: 4K
* Packet Buffer Memory: 1.5Mb
* Jumbo Frame: 16 KB
SOFTWARE FEATURES
* Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
* L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
* VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
* Transfer Method: Store and Forward
OTHERS
* Certification: FCC, CE, RoHS
* Package Contents
TL-SG108E
Power Adapter
Installation Guide
Rubber Feet
* System Requirements: Microsoft® Windows® for Management Utility
* Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
