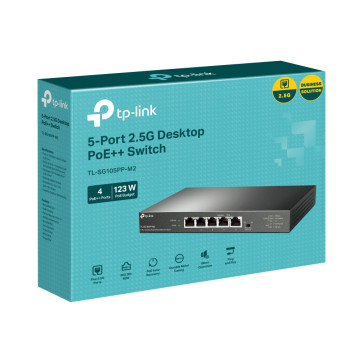

TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++

TP-Link TL-SG105PP-M2 Desktop Switch Specifications:

HARDWARE FEATURES
--------------------------------------------------------------
* Interface：
• 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media：
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

* Fan Quantity: Fanless

* External Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)

* Packet Forwarding Rate: 18.6 Mpps

* PoE Ports (RJ45)
• Standard: 802.3 af/at/bt type3 compliant
• PoE++ Ports: Ports 1–4
• Power Supply: 123 W

* MAC Address Table: 4K

* Switching Capacity: 25 Gbps

* Dimensions ( W x D x H ): 8.2×4.9×1.0 in (209×126×26 mm)

* Max Power Consumption:
• 7.57 W (220/50 Hz. no PD connected)
• 143.37 W (220/50 Hz. with 123 W PD connected)

* Max Heat Dissipation:
• 25.81BTU/h (220 V/50 Hz with no PD connected)
• 488.89 BTU/h (220 V/50 Hz with 123W PD connected)

SOFTWARE FEATURES
--------------------------------------------------------------
* Advanced Features
• Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• PoE Auto Recovery (Ports 1-4)

* Transmission Method: Store-And-Forward

OTHERS
--------------------------------------------------------------
* Certification: FCC, CE, RoHS

* Package Contents
• TL-SG105PP-M2
• Power Adapter
• Installation Guide
• Rubber Feet

* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
