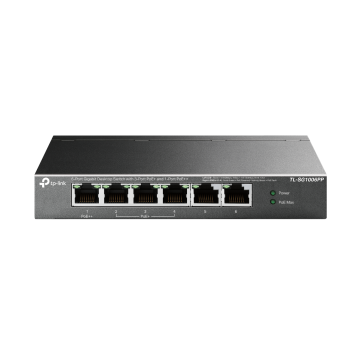

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

TP-Link TL-SG1006PP Switch Highlight Features:

* 6× 10/100/1000 Mbps RJ45 ports

* With one PoE++ port and three PoE+ ports, transfers data and power on one single cable

* Works with IEEE 802.3af/at/bt compliant PDs

* 802.1p/DSCP QoS enable smooth latency-sensitive traffic

* Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port

* Supports PoE Power up to 64 W for all PoE ports

* Up to 250m data and power transmitting range under Extend Mode

* PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

* Plug and Play, no configuration and installation required

TP-Link TL-SG1006PP Switch Specifications:

HARDWARE FEATURES
-------------------------------------
* Interface
• 6× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

* Fan Quantity: Fanless

* Power Supply:
External Power Adapter (Output: 53.5 VDC / 1.31 A)

* Max Power Consumption：2.3 W (220 V/ 50 Hz)

* Dimensions： 6.2x4.0x1.0 in (158x101x25 mm)

* Max. Power Consumption
• 4.75 W (220/50 Hz. no PD connected)
• 71.46 W (220/50 Hz. with 64 W PD connected)

* Max. Heat Dissipation
• 16.20 BTU/h (220/50 Hz. no PD connected)
• 243.68 BTU/h (220/50 Hz. with 64 W PD connected)

PERFORMANCE
-------------------------------------
* Packet Forwarding Rate: 8.928 Mpps

* MAC Address Table: 4K

* Packet Buffer Memory: 1Mb

* PoE Ports (RJ45)
• Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
• Power Supply: 64 W

Switching Capacity：12 Gbps

SOFTWARE FEATURES
-------------------------------------
Advanced Features
• Compatible With IEEE 802.3af/at/bt Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)

Transmission Method：Store-And-Forward

OTHERS
-------------------------------------
* Certification: FCC, CE, RoHS

* Package Contents
• TL-SG1006PP
• Power Adapter
• Installation Guide

* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
