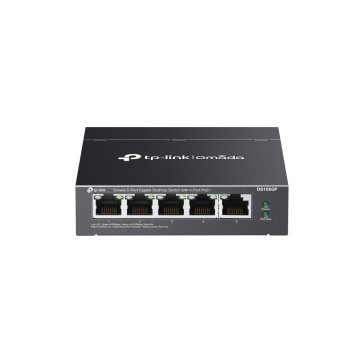

TP-Link DS105GP Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+

Highlight Features:

* 5× 10/100/1000 Mbps RJ45 ports

* With four PoE+ ports, transfers data and power on one single cable

* Works with IEEE 802.3af/at compliant PDs

* 802.1p/DSCP QoS enable smooth latency-sensitive traffic

* Supports PoE Power up to 30 W for each PoE port

* Supports PoE Power up to 65 W for all PoE ports

* Up to 250m (820ft) data and power transmitting range under Extend Mode

* PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

* Plug and Play. No configuration or central management required.

TP-Link DS105GP Gigabit Desktop Switch Specifications:

HARDWARE FEATURES
-----------------------------------------------------
Interface
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: Fanless

Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)

PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 65 W

Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption
• 3.44 W (220/50 Hz. no PD connected)
• 74.49 W (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation
• 11.73 BTU/h (no PD connected)
• 254.01 BTU/h (with 65 W PD connected)

PERFORMANCE
-----------------------------------------------------
Switching Capacity: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
MAC Address Table: 2K
Jumbo Frame: 16 KB

SOFTWARE FEATURES
-----------------------------------------------------
Advanced Features
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)

Transfer Method: Store-And-Forward

OTHERS
-----------------------------------------------------
Certification: FCC, CE, RoHS

Package Contents
• DS105GP
• Power Adapter
• Installation Guide

Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
