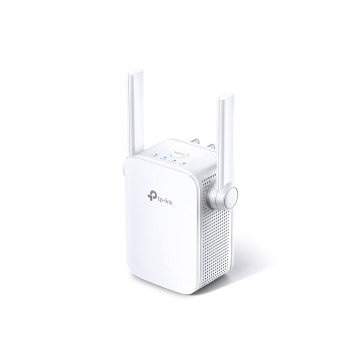

TP-Link RE305 AC1200 Wi-Fi Range Extender

TP-Link RE305 AC1200 Wi-Fi Range Extender Specifications:

WIRELESS
----------------------------------------------------
Working Modes: Range Extender/Access Point

HARDWARE FEATURES
----------------------------------------------------
Plug Type: EU, UK, US
Interface: 1 x 10/100Mbps Ethernet Port (RJ45)
Button: WPS Button, Reset Button
Input Power: 100-240V~50/60Hz
Max. Power Consumption: 7.3W（max power consumption）
Dimensions ( W x D x H ): 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna: 2 External Antennas

WIRELESS FEATURES
----------------------------------------------------
Wireless Standards: IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz and 5GHz
Signal Rate: 300Mbps at 2.4GHz, 867Mbps at 5GHz

Reception Sensitivity
5GHz：
11a 6Mbps:-91dBm
11a 54Mbps: -74dBm
11ac HT20 mcs8: -68dBm
11ac HT40 mcs9: -63dBm
11ac HT80 mcs9: -59dBm

2.4GHz
11g 54Mbps: -79dBm
11n HT20 mcs7: -77dBm
11n HT40 mcs7: -74dBm

Wireless Functions
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage

Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

Transmission Power: 2.4G<17dBm， 5G<17dBm

OTHERS
----------------------------------------------------
Certification: CE, FCC, RoHS

Package Content
AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide

Box Dimensions (W X D X H): 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)

System Requirements： Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
