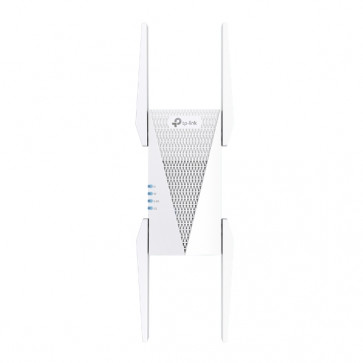

TP-Link RE815X AX3000 Mesh WiFi 6 Extender

TP-Link RE815X Extender Highlight Features:

* Faster AX5400 Wi-Fi 6: 2402 Mbps(5 GHz)+ 2402 Mbps(5 GHz)+574 Mbps(2.4 GHz).†

* Tri-Band: Provides 3 separate bands for less congestion, larger capacity, and faster speeds.

* 160 MHz Channel Width: Expands bandwidth to double the network speed of traditional 80 MHz.‡

* More Devices Connected: Connects up to 96 devices simultaneously.△

* Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§

* EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇

* AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.

* Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.

TP-Link RE815X Extender Specifications:

* Working Modes: Range Extender / Access Point

* Ports: 1 Gigabit Ethernet Port

* Button: WPS Button, Reset Button

* Input Power: 100-240V~50/60Hz

* Power Consumption: 23W

* Dimensions ( W x D x H ): 4.2×2.2×13.7 in. (106.6×56.7×348.2 mm)

* Antenna: 4 External Antennas

* Wireless Standards:
• IEEE 802.11a/n/ac/ax 5GHz
• IEEE 802.11b/g/n/ax 2.4GHz

* Frequency: 2.4GHz and 5GHz

* Signal Rate:
• 574 Mbps at 2.4 GHz
• 2402 Mbps at 5 GHz-1
• 2402 Mbps at 5 GHz-2

* Working Modes: Range Extender / Access Point

* Wireless Functions
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage Adjustment

* Wireless Security
• WPA
• WPA2
• WPA3

* Transmit Power:
FCC:
• <26 dBm {2.4 GHz };
• <23.5 dBm {5.25 GHz~5.35GHz & 5.47 GHz~5.725 GHz};
• <27 dBm {5.15GHz~5.25 GHz &5.725 GHz~5.825 GHz}

* Mesh Technology: EasyMesh-Compatible

* Certification: FCC, RoHS

* Package Contents
• Wi-Fi Range Extender RE815X
• Quick Installation Guide

* System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
