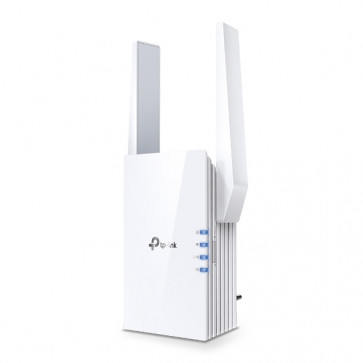

TP-Link RE505X AX1500 Wi-Fi 6 Range Extender
TP-Link RE505X AX1500 Wi-Fi 6 Range Extender
Availability: In stock
Highlight Features:
* Extend WiFi Coverage: Eliminate WiFi dead zones by expanding high-performance WiFi using specially designed high-gain antennas.
* Wi-Fi 6 Speeds: Enjoy smoother and more reliable streaming, gaming, downloading, and more with dual-band WiFi speeds up to 1.5 Gbps.1 2
* Connect More Devices to Your Network: Connect more devices that are out of range from your main router while eliminating poor performance.
* Gigabit Ethernet Port: Experience wired speed and reliability anywhere in your home with the gigabit ethernet port.
* TP-Link OneMesh™ Technology: Create a mesh network using compatible routers, like Archer A7, and range extenders so you never switch networks or lose signal. 3
* Set Up in Minutes: Easily set up and manage your WiFi in a few quick and easy steps using the intelligent signal indicator and TP-Link Tether app (Android, iOS).
* Universal Compatibility: Compatible with all WiFi-enabled devices and routers or access points. It even supports new AX phones, laptops and other devices.4
TP-Link RE505X Wi-Fi 6 Range Extender Specifications:
* Working Modes: Range Extender/Access Point
* Ports: 1 Gigabit Ethernet Port
* Button: WPS Button, Reset Button
* Input Power: 100-240V~50/60Hz
* Power Consumption: 10W
* Dimensions ( W x D x H ): 2.9×1.8×4.9 in. (74.0×46×124.8 mm)
* Antenna: 2 Internal Antennas
* Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
* Frequency: 2.4GHz and 5GHz
* Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
* Working Modes: Range Extender/Access Point
* Reception Sensitivity:
5GHz:
11a 6Mbps: -93dBm,
11a 54Mbps: -75dBm
11ac HT20 MCS0: -92dBm,
11ac HT20 MCS8: -70dBm
11ac HT40 MCS0: -90dBm,
11ac HT40 MCS9: -66dBm
11ac HT80 MCS0: -87dBm,
11ac HT80 MCS9: -62dBm
2.4GHz:
11g 54Mbps: -77dBm,
11n HT20 MCS7: -75dBm
11n HT40 MCS7: -72dBm
* Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
* Wireless Security: 64/128-bit WEP, WPA/WPA2-PSK encryptions
* Transmission Power: CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
* Certification: FCC, RoHS
* Package Contents
Wi-Fi Range Extender RE505X
Quick Installation Guide
* System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
