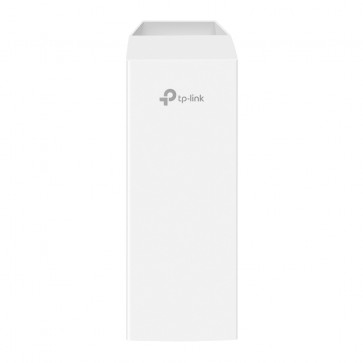

TP-Link Omada EAP211-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

Highlights：

* 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1

* Ideal for long-range wireless transmission up to 1 km.*2

* Auto-pairing and agile LEDs for efficient deployment.

* 3× Gigabit Ethernet ports for more high-speed IP camera connections.

* Supports Omada SDN for remote and centralized management.

* IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3

* Supports Passive PoE for flexible deployment (adapter included).

TP-Link EAP211-Bridge KIT Access Point Specifications：

HARDWARE FEATURES

* Interface：3x Gigabit Ethernet Ports

* Button：Reset

* Power Supply： 12V DC / 24V Passive PoE (Passive PoE adapter included.)

* Power Consumption：

* Dimensions ( W x D x H )：8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)

* Antenna Type：
- Internal 2×2 Dual-polarized directional MIMO antennas
- 5 GHz: 7.0 dBi

* Weatherproof Enclosure: IP65

* Mounting：Pole mounting (Accessories included)

WIRELESS FEATURES

* Coverage: 1000m(3280ft)

* Wireless Standards: IEEE 802.11 a/b/g/n/ac

* Frequency： 5GHz

* Signal Rate
• 5 GHz:Up to 867 Mbps

* Wireless Functions：
• Mesh
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP

* Wireless Security
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise

* Transmission Power
• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

• FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT

* Omada App：Yes

* Restore & Backup: Yes

* Firmware update via Web: Yes

* NTP: Yes

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

* Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

* Email Alerts:

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* SSH: Yes

* Web-based Management: Yes

OTHERS

* Certification: CE, FCC, RoHS

* Package Contents
• EAP211-Bridge KIT
• Passive PoE Adapter
• Power Cord
• Installation Guide
• Mounting Kit

* Environment
• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
