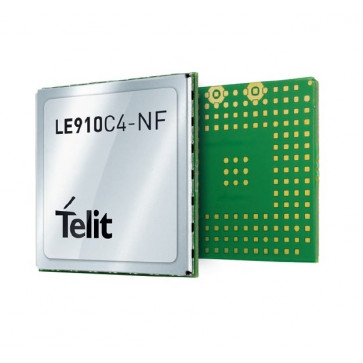

Telit LE910C4-NF LGA LTE Cat.4 Module
* Form factor: LGA
* LTE Cat.4 Module
* Support LTE Bands: B12, B14, B4, B2, B5, B13, B71
* Approval by AT&T, VZW, T-Mobile in North American
* VoLTE support
* LTE DL 150Mbps, UL 50Mbps
Availability: In stock
Telit LE910C4-NF LGA 4G LTE module is compliant with the 3GPP Release 10 and are available with optional quad-constellation GNSS capability. This compact LGA form factor family is available in a variety of configurations, supporting both multi-mode and fallback as needed for specific regions, carriers, and use cases. The LE910C4-NF is supporting the latest required band 14 for dedicated public safety, first responder networks carrier implementation.
Key Benefits:
* Best-in-class 3GPP Rel. 10 platform
* Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
* Internet friendly with integrated TCP/IP and UDP/IP stacks
* Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
* Over-the-Air firmware update
* Embedded GNSS solution
Telit LE910C4-NF LGA module Specs and Features:
* LTE Cat.4 Module
* Support 4G LTE Bands: B12, B14, B4, B2, B5, B13, B71
* Support 3G B2, B5
* Target market: North America
(Dedicated public safety, first responder networks, AT&T, VZW, T-Mobile)
* Band 14 support
* LTE FDD Cat.4, 3GPP release 10 compliant
* Rx Diversity and MIMO DL 2x2
* Single Rx option
* VoLTE support
* SMS over IMS
* Built-in UDP/TCP/FTP/SMTP stack
* IPv4/IPv6 stack
* Control via AT commands according to 3GPP
* TS 27.005, 27.007 and Telit Custom AT commands
* SIM application Tool Kit 3GPP TS 51.014
* OMA-DM Telit Software Management
* Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS
* Data rates:
- LTE Cat. 4: Uplink up to 50 Mbps, Downlink up to 150 Mbps
- DC-HSPA+ 42 Mbps
* Environmental
- Dimensions 28.2 x 28.2 x 2.2 mm
- Temperature Range: Industrial: -40°C to +85°C
- REACH and RoHS compliant
* Interfaces
- 181-pin LGA interface
- 10 I/O ports (@1.8V) including multifunctional I/Os
- USB 2.0 HS / HSIC
- UART
- SPI
- PCM
- 1.8 V / 3 V SIM interface
- RF pad, RX Div. & MIMO pad
* Approvals
- FCC/IC, PTCRB, GCF
- MNO: AT&T, VZW, T-Mobile
* Electrical & Sensitivity
- Output power
- Class 3 (0.2 W, 23 dBm) @ LTE
* Supply voltage range:
- Nominal: 3.8 VDC
- Range: 3.3 - 4.2 VDC
