Telit LE910C4-EU LTE CAT-4 mPCIe Module

* Telit LTE Cat4 module


* LTE DL 150Mbps, UL 50Mbps


* 181-pin LGA interafce


* VoLTE support


* Built in UDP/TCP/FTP/SMTP stack


* Support GPS, Glonass, Bei-dou, Galileo, QZSS

Sign up for price alert

Availability: In stock

$169.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

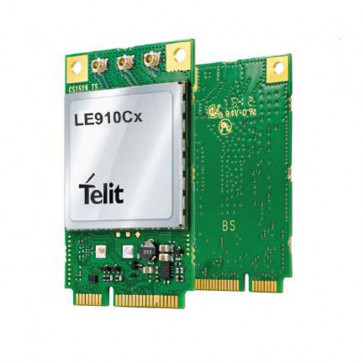

Telit LE910C4-EU Mini PCIe module is intended for the European market. It is 3GPP release 10 compliant and comes with simultaneous support of GPS, Glonass, Bei-dou, Galileo, QZSS.


Key Benefits

* Standard Mini PCIe Data-card form factor

* Best-in class 3GPP rel10 platform

* Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs

* Battery-friendly 1.8V GPIO

* Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature range

* Internet friendly with integrated TCP/IP and UDP/IP stacks,

* Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module

* Over-the-Air firmware update

Designers looking to add LTE capabilities to commercial and industrial computing devices benefit from the simple, yet powerful mPICe form factor with the flexibility to choose another technology best suited for the application environment from any one of the other models in the xE910 mPCIe series.


Telit LE910C4-EU Specs and Features:

* LTE Cat.4 Module

* Support 4G LTE Bands: B1/B3/B7/B8/20/B28

* Support 3G UMTS Bands: B1/B3/B8

* Support 2G GSM/EDGE 900/1800MHz

* 3GPP release 10 compliant

* Rx Diversity and MIMO DL 2x2

* Single Rx option

* VoLTE support

* Antenna Interface: IPEX MHF/U.FL

* SMS over IMS

* Built-in UDP/TCP/FTP/SMTP stack

* Pv4/IPv6 stack

* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands

* SIM application Tool Kit 3GPP TS 51.014

* OMA-DM Telit Software Management

* Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS

* Data rates:
- LTE Cat. 4: Uplink up to 50 Mbps, Downlink up to 150 Mbps
- DC-HSPA+ 42 Mbps


* Environmental
- Dimensions: 51 x 30 x 3.2mm
- Temperature Range: Industrial: -40°C to +85°C
- REACH and RoHS compliant


* Interfaces
- 181-pin LGA interface
- 10 I/O ports (@1.8V) including multifunctional I/Os
- USB 2.0 HS / HSIC
- UART
- SPI
- PCM
- 1.8 V / 3 V SIM interface
- RF pad, RX Div. & MIMO pad


* Approvals

- R&TTE/GCF (Europe)

* Electrical & Sensitivity

> Output power
- Class 3 (0.2 W, 23 dBm) @ LTE
- Class 3 (0.25 W, 23 dBm) @ 3G
- Class 4 (2W) @ GSM 900
- Class 1 (1W) @ DCS 1800

* Supply voltage range:

- Nominal: 3.8 VDC
- Range: 3.3 - 4.2 VDC
