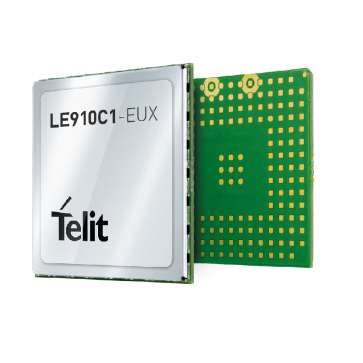

Telit LE910C1-EUX LTE Cat1 181-pin LGA Module
* LTE FDD Cat.1. 3GPP release 10 compliant
* Form factor: 181-pin LGA interface
* Rx Diversity and MIMO DL 2x2
* DL 10Mbps, UL 5Mbps
* Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS
* VoLTE support
* Over-the-Air firmware update
Availability: Out of stock
Telit LE910C1-EUX is a LTE Cat-1 module based on ThreadX intended for EMEA region. Telit LE910C1-EUX ThreadX is a member of Telit's flagship xE910 module family delivering 4G radio access technology in the 28.2 x 28.2 x 2.2 mm family form factor. The Telit xE910 Unified Form Factor Family is comprised of 2G, 3G, and 4G, 3GPP and 3GPP2 products sharing a common form factor as well as electrical and programing interfaces which allows developers to implement a "design once, use anywhere" strategy.
Key Benefits:
* Best-in class 3GPP rel10 platform
* MTC features ready according to 3GPP Rel.12
* Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
* Internet friendly with integrated TCP/IP and UDP/IP stacks
* Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
* Over-the-Air firmware update
* Embedded GNSS solution
Telit LE910C1-EUX module Specifications:
Product Features
* LTE FDD Cat.1. 3GPP release 10 compliant
* Rx Diversity and MIMO DL 2x2
* Single Rx option
* VoLTE support
* SMS over IMS
* Built in UDP/TCP/FTP/SMTP stack
* Pv4/IPv6 stack
* Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands
* SIM application Tool Kit 3GPP TS 51.014
* OMA-DM Telit Software Management
* Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS
* LTE Category 1 data rates: Uplink up to 5 Mbps, Downlink up to 10 Mbps
* DC-HSPA+ speed up to 42 Mhz
* Physical & Environment
- Dimensions 28.2 x 28.2 x 2.2 mm
- Extended temperature range: -40 to +85 °C
- REACH and RoHS compliant
* Interfaces
- 181-pin LGA interface
- 10 I/O ports (@1.8V) including multifunctional I/Os
- USB 2.0 HS / HSIC
- UART
- SPI
- PCM
- I2C
- 1.8 V / 3V SIM interface
- RF pad, RX Div. & MIMO pad
* Output power: Class 3 (0.2 W, 23 dBm) @ LTE
* Supply voltage
- Nominal: 3.8 VDC
- Range: 3.4 - 4.2 VDC
