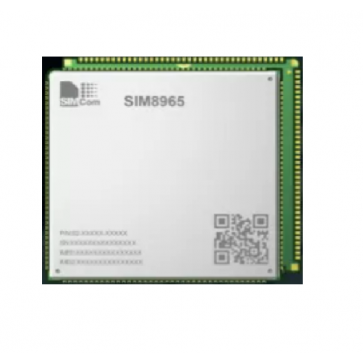

SIMCOM SIM8965 4G Smart Module

SIMCOM SIM8965 is an LTE Cat.4 intelligent module built on the Qualcomm SM6115 chipset platform, featuring an 8-core 64-bit ARM Kryo260 processor and Adreno™ 610 GPU with a frequency of up to 2.0GHz. In terms of connectivity, the SIM8965 supports LTE Cat.4, with downlink speeds of up to 150Mbps and uplink speeds of up to 50Mbps, and is compatible with global frequency bands, facilitating data communication across various network types including GSM/GPRS/EDGE, WCDMA/HSPA+, LTE-FDD, and LTE-TDD.

SIMCOM SIM8965 4G LTE Module Specifications:

* Product type: 4G LTE Cat4 Smart Module

* Package: LGA + LCC

* Dimensions: 40.5*40.5*3(mm)

* CPU: Qualcomm SM6115 chipset , 8-core 64-bit ARM Kryo260 processor

* GPU: Adreno™ 610 GPU

* Memory

* Supply Voltage: 3.4V ~ 4.4V

* Temperature: -35 °C ~ +75 °C

* Weight: Approx. 10.5g

* Variant models: SIM8965CE, SIM8965E, SIM8965EA, SIM8965SA, SIM8965NA, SIM8965W

* Frequency Bands:

SIMCOM SIM8965CE:
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- WCDMA Bands: B1/B8
- GSM 900/1800 MHz

SIMCOM SIM8965E:
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28
- LTE-TDD Bands: B38/B40/B41
- WCDMA Bands: B1/B5/B8
- GSM 850/900/1800 MHz

SIMCOM SIM8965EA:
- LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B20/B28
- LTE-TDD Bands: B38/B40/B41
- WCDMA Bands: B1/B2/B4/B5/B8
- GSM 850/900/1800/1900 MHz

SIMCOM SIM8965SA:
- LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B28/B66
- LTE-TDD Bands: B40
- WCDMA Bands: B1/B2/B5/B8
- GSM 850/900/1800/1900 MHz

SIMCOM SIM8965NA:
- LTE-FDD Bands: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
- LTE-TDD Bands: B41
- WCDMA Bands: B2/B4/B5
- GSM N/A

SIMCOM SIM8918W:
- LTE-FDD Bands: N/A
- LTE-TDD Bands: N/A
- WCDMA Bands: N/A
- GSM N/A

* WLAN: 2.4G/5G Hz, 802.11 a/b/g/n/ac

* BT: BT5.1

* GNSS: Beidou/GPS/GLONASS or GPS/BeiDou/Galileo

* Data transfer:
- LTE(Mbps): 150(DL)/50(UL)
- HSPA+(Mbps): 42(DL)/5.76(UL)
- WCDMA(Kbps): 384(DL)/384(UL)
- GSM(Kbps): 107(DL)/85.6(UL)

* USB Drive: Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10/Linux

* Operating System: Android 11/12

* Video encoding and decoding
- Encode：1080p 30fps(H.264,MPEG4,H.263)
- Decode：1080p 30fps(H.264,MPEG4,VP8)
- Encode+Decode：1080p 30 decode + 720p 30 encod

* Audio encoding and decoding
- Voice codec: EVS, EVRC, EVRC-B, EVRC-WB G.711 and G.729A/AB GSM-FR, GSM-EFR, and GSM-HR AMR-NB and AMR-WB
- Audio codec: MP3; AAC; HE AAC v1, v2; FLAC; APE; ALAC; AIF

* Firmware Upgrade: USB/OTA/TF card

* Interface
- LCM: One 4-Lane MIPI_DSI interface, the highest resolution is 2520*1080, FHD+
- Camera: supporting dual cameras of 13MP+13MP or 25MP+5MP
- UIM Card: Support Dual Card Dual Standby: 1.8V/3.0V Dual Voltage Adaptive
- UART: Support up to 3 Serial Ports
- USB: USB 3.1/2.0 ，Support Type-C，USB OTG
- Audio: 3 input & 3 output ; 4-Channel Digital Microphone Input
- ADC: *1 16bits ADC
- GPIO: ≥ *25
- SD Card: SDC2 external interface supports SD3.0 TF card (Maximum 256G), hot-join support
- SPI: Support up to 2*SPI interfaces, support master mode, the highest rate 50MHz
- I2C: Support up to ten I2C for touch screen, camera, sensor and other peripherals
- I2S: *2
- Antenna: Main & Diversity & GNSS & Wi-Fi/BT

* Certification: RoHS/REACH/FCC*/GCF*/PTCRB*/IC*/3C
