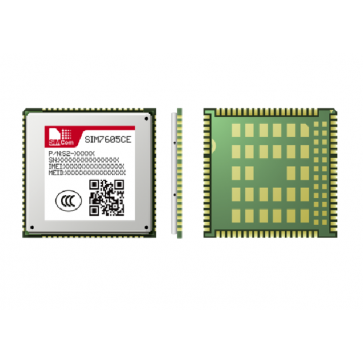

SIMCOM SIM7605CE LTE Cat4 Module

SIMCOM SIM7605CE is an LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

SIMCOM SIM7605CE integrates multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with SIM7500/SIM7600/SIM7600-H series modules. Meanwhile the SIM7605CE integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.

SIMCOM SIM7605CE module specifications：

* Frequency Bands
- LTE-TDD B34/B38/B39/B40/B41
- LTE-FDD B1/B3/B5/B8
- TD-SCDMA B34/B39
- UMTS/HSPA+ B1/B8
- EVDO/CDMA BC0
- GSM/GPRS/EDGE 900/1800 MHz

* Supply Voltage 3.4V ~ 4.2V，type：3.8V

* Operation temperature -40℃ ~ +85℃

* Dimensions 32.0*29.0*2.4mm

* Weight：5.7±0.2g

* Control Via AT Commands

Interfaces
- USB2.0
- UART
- (U)SIM card(1.8V/3V )
- PCM*
- MMC/SD
- SDIO
- ADC
- I2C
- GPIO
- SGMII*
- Antenna: Support Primary/Rx-diversity/GNSS*

* Other Features
- USB Driver for Microsoft Windows 7/8/10
- USB Driver for Linux /Android
- RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
- RNDIS/NDIS/MBIM/ECM
- Support SMS
- SSL3.0/TLS1.0/TLS1.2
- Open Linux Re-development
- FOTA

* Data Transfer
- LTE Cat 4 Uplink up to 50Mbps Downlink up to150Mbps
- HSPA+ Uplink up to 5.76Mbps Downlink up to 42 Mbps
- UMTS Uplink/Downlink up to 384Kbps
- CDMA2000/EVDO Uplink up to 1.8Mbps Downlink up to 3.1Mbps
- EDGE Uplink/Downlink up to 236.8Kbps
- GPRS Uplink/Downlink up to 85.6Kbps

* Certifications
- 3C/TA
- RoHS/REACH
