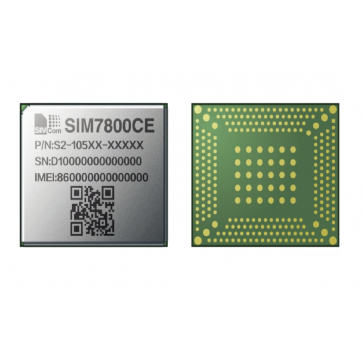

SIMCOM SIM7800CE 4G LTE Cat4 Module

SIMCOM SIM7800CE is a 4G LTE Cat4 module supporting LTE-TDD/LTE-FDD/HSPA+/TD-SCDMA/EVDO/GSM/GPRS/EDGE networks. It can support peak download speeds up to 150Mbps and upload speeds to 50mbps. The design and production of SIMCOM SIM7800CE is compliant with IATF 16949:2016 quality management system. It's specially designed for Internet of Vehicles.

SIMCOM SIM7800CE module specifications:

* Frequency bands:
- TDD-LTE B34/B38/B39/B40/B41
- FDD-LTE B1/B3/B5/B8
- TD-SCDMA B34/B39
- UMTS/HSPA+ B1/B8
- CDMA 1X/EVDO BC0
- GSM/GPRS/EDGE 900/1800 MHz

* AT Command

* Power voltage: 3.3V~ 4.3V

* Temperature: -40℃ to +85℃

* Dimensions: 34*40*3.1mm

* Weight: 8.7±0.2g

* GNSS: GPS One Gen 8C;standalone;GPS/GLONASS/Beidou2; AGPS(SUPL2.0);XTRA;LBS

* Other features:
- Support Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10 USB
- Support Linux /Android USB Driver
- Support Android RIL driver
- Support firmware update via USB, FOTA
- Support TCP/IP/IPV4/IPV6 Multi-PDP/FTPS/HTTPS/DNS/COAP/MQTT protocol
- Support file backup
- Support DTMF/TTS/eCall
- Security: SELinux/Trustzone/Secure boot
- Support Open Linux RE-development
- Support WIFI 2.4G/5G dual-mode, AT+STA, Max 30 connections(with W59 module)
- Support BT 3.0 SPP/BLE 4.2(with W59 module)
- RNDIS/NDIS

* Data rates:
- LTE Cat4: UL 50Mbps, DL 150Mbps
- TD-SCDMA: UL 128kbps, DL 384kbps
- TD-HSDPA/HSUPA:UL 2.2Mbps, DL 2.8Mbps
- HSPA+: UL 5.76Mbps, DL 42Mbps
- UMTS: UL 384Kbps, DL 384Kbps
- EDGE Class: UL 236.8Kbps, DL 236.8Kbps
- GPRS: UL 85.6Kbps, DL 85.6Kbps

* Interfaces:
- USB2.0 with OTG function
- UART x 3
- I2C
- Mic/Receiver SPI
- HSIC
- SDIO
- SD Card
- ADC *3
- SGMII Interface GPIO *5
- 1.8V/3.0V USIM

* Certificate: CCC* / TA*/CTA*
