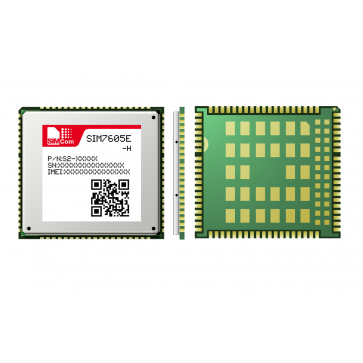

SIMCOM SIM7605E-H LTE Cat4 Module

SIMCOM SIM7605E-H is an LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

SIMCOM SIM7605E-H integrates multiple built-in network protocols and supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7605E-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.

SIMCOM SIM7605E-H module specifications：

* Frequency Bands
- LTE-TDD B38/B40/B41
- LTE-FDD B1/B3/B5/B7/B8/B20
- UMTS/HSPA+ B1/B8
- GSM/GPRS/EDGE 900/1800 MHz

* Supply Voltage 3.4V ~ 4.2V，type：3.8V

* Operation temperature -40℃ ~ +85℃

* Dimensions 30.0*30.0*2.5mm

* Weight：4.6±0.1g

* Control Via AT Commands

Interfaces
- USB2.0
- UART
- (U)SIM card(1.8V/3V )
- PCM*
- SGMII*
- MMC/SD
- SDIO
- ADC
- I2C
- GPIO
- Antenna: Support Primary/Rx-diversity/GNSS*

* Other Features
- USB Driver for Microsoft Windows 7/8/10
- USB Driver for Linux /Android
- RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
- RNDIS/NDIS/ECM
- SSL3.0/TLS1.0/TLS1.2
- DTMF*/Audio Playing*/VoLTE*

* Data Transfer
- LTE Cat 4 Uplink up to 50Mbps Downlink up to150Mbps
- HSPA+ Uplink up to 5.76Mbps Downlink up to 42 Mbps
- UMTS Uplink/Downlink up to 384Kbps
- EDGE Uplink/Downlink up to 236.8Kbps
- GPRS Uplink/Downlink up to 85.6Kbps

* Certifications
- CE
- RoHS/REACH
