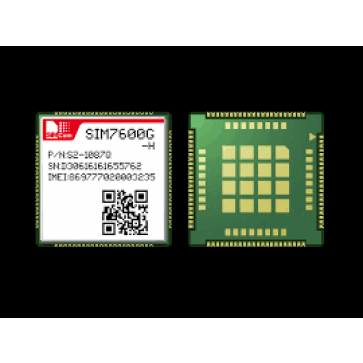

SIMCOM SIM7600G-H LTE Cat4 LCC + LGA Module

SIMCOM SIM7600G-H is a multi-band LTE-FDD/LTE-TDD module solution in LCC + LGA form factor. It supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/DNS, the SIM7600G-H module provides much flexibility and ease of integration for customer's application

SIMCOM SIM7600G-H module is a global variant with supports for more than 20 LTE bands as well as fallback to 3G and 2G. The LCC package is compatible with the SIM7600x-H series and is compatible with the SIM7500/SIM7600 series AT commands, which minimizes customer R&D investment and shortens time to market. The SIMCOM SIM7600G-H is designed for a variety of high-throughput wireless data communication applications.Designed for high performance, safety and reliability to meet a wide range of customer needs.

SIMCOM SIM7600G-H LCC module specifications:

* SIMCOM Global LTE module

* Category: LTE Cat4

* Support 4G LTE Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66

* Support 3G UMTS/HSPA+: B1/2/B4/B5/B6/B8/B19

* Support 2G GSM/GPRS/EDGE: 850/900/1800/1900MHz

* Form factor: LCC + LGA Package

* Control Via AT Commands

* Supply voltage range: 3.4V~ 4.2V, 3.8V Typical

* Operation temperature: -40℃to +85℃

* Dimension: 30*30*2.9mm

* Weight: 5.7g

* Bandwidth: 1.4/3/5/10/15/20MHz

* 3GPP E-UTRA Release 11

* Other features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 2.4/4.0/5.0/6.0/7.0
- MBIM to Win8
- Firmware update via USB
- Supports TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS/DNS
- Support for SSL3.0/TLS1.0/TLS1.2
- SSL3.0/TLS1.0/TLS1.2
- DTMF (Sending and Receiving)
- Audio Playing
- USB Audio and VoLTE
- FOTA
- eCall*

* Data rates:
- LTE CAT4: Uplink up to 50Mbps, Downlink up to 150Mbps
- HSPA+: Uplink up to 5.76Mbps, Downlink up to 42 Mbps
- UMTS: Uplink/Downlink up to 384Kbps
- EDGE: Uplink/Downlink up to 236.8Kbps
- GPRS: Uplink/Downlink up to 85.6Kbps

* Interfaces
- USB2.0 with High speed up to 480Mbps
- UART
- GPIO
- Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas
- (U)SIM card (1.8V/3.0V)
- Digital Audio through PCM
- MMC/SD
- SDIO
- ADC
- GNSS: GPS/GLONASS/Beidou/Galileo*

* Approvals
- RoHS Compliant
- CE
- FCC/PTCRB/AT&T*
- FCC*/GCF*/Verizon*
- ACMA*
- JATE/TELEC
