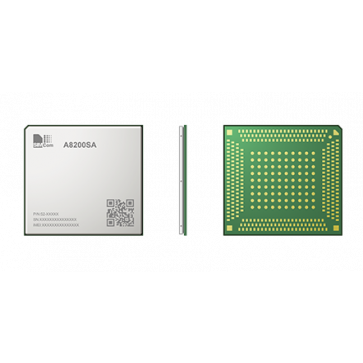

SIMCOM A8200SA 5G NR/LTE-FDD/LTE-TDD Module

SIMCOM A8200SA is a Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R16 5G SA/NSA.

With a rich protocols, it is integrated with interfaces such as PCIe, USB3.1, GPIO etc. This module provides applications with great flexibility and ability of integration.

SIMCOM A8200SA adopts LGA form factor. AT commands of A8200SA are compatible with A8200X series modules. This also minimizes costs for customer and shortens time to market.

It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.

SIMCOM A8200SA 5G Module Specifications:

* Product type: 5G Wireless Module

* Form Factor: LGA

* Dimensions(mm): 41.0*44.0*2.85

* Frequency Bands
- 5G SA: n2/n5/n7/n8/n28/n38/n40/n66/n71/n78
- 5G NSA: n2/n5/n7/n8/n28/n38/n40/n66/n71/n78
- 5G UL 2*2 MIMO: n78
- 5G DL 4*4 MIMO: n2/n66/n7/n38/n78
- LTE-FDD: B2/B4/B5/B7/B8/B26/B28/B66/B71
- LTE-TDD: B38/B40/B42/B43
- WCDMA: B2/B4/B5

* Temperature: -30℃ ~ +70℃

* Supply Voltage(V): 3.3 ~ 4.4

* Data Transfer
- Sub-6G NSA: 2.15Gbps(DL)/550Mbps(UL)
- Sub-6G SA: 4Gbps(DL)/1Gbps(UL)
- LTE: 300Mbps(DL)/50Mbps(UL)
- HSPA+: 42Mbps (DL)/5.75Mbps(UL)

* Software Features
- Protocol: TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
- TLS ●
- File System ●
- FOTA ●
- Android RIL:
- USB Driver: Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android
- MBIM:
- NDIS:
- Firmware Upgrade:

* Interfaces
- SIM Card: SIM*2
- USB: USB3.1
- PCIe: PCIe GEN3*2
- RGMII/SGMII
- ADC
- UART
- SDIO
- PCM
- I2C
- Diversity Receiver

* Regulatory: RoHS*/REACH*/CCC*/CTA*/TA*
