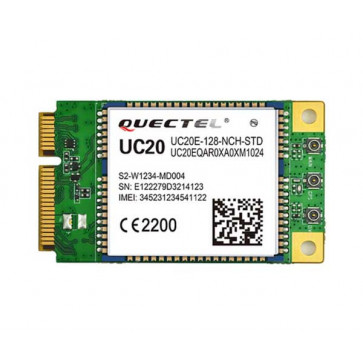

Quectel UC20 Mini PCIe Module

* Quectel UMTS/HSDPA Module

* HSDPA DL speed up to 14.4Mbps

* Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage

* GNSS receiver available for applications

* High-quality data and image transmission

* Robust mounting and interfaces

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Quectel UC20 Mini PCIe is a powerful UMTS/HSPA+ module featuring a maximum data rate of 14.4Mbps downlink and 5.76Mbps uplink. The module is designed to provide customers with global network coverage on the connectivity of UMTS/HSPA+, and it is also fully backward compatible with existing EDGE and GSM/GPRS networks.

The compact profile of 30.0mm × 50.95mm × 4.9mm in standard Mini PCIe form factor and the high integration level enable integrators and developers to easily design their applications and truly benefit from the low power consumption and convenient Plug and Play function.

With an extended operating temperature range from -40°C up to +80°C, UC20 Mini PCIe functions reliably in extreme environments, and thus it is ideal to be used in outdoor or indoor sites devoid of cooling and heating systems.

A rich set of Internet protocols, industry-standard interfaces (USB/UART/PCM/LED_WWAN#/GNSS) and abundant functions (USB serial drivers for Windows 7/8/8.1/10, Windows CE, Linux, Android) extend the applicability of the module to a wide range of commercial and industrial M2M applications.

Key Benefits

* Worldwide UMTS/HSPA+ and GSM/GPRS/EDGE coverage

* Standard Mini PCIe form factor maximizes the convenience for customers to design and use

* High-quality data and image transmission even in a harsh environment

* High sensitivity GNSS receiver available for applications requiring fast and accurate fixes in any location

* Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts

* Robust mounting and interfaces

Quectel UC20 Mini PCIe 3G module Specifications:

Quectel UC20 Mini PCIe sub-models

* Quectel UC20-G Mini PCIe:
> 3G 800/850/900/1900/2100MHz @UMTS
> 2G 850/900/1800/1900MHz @GSM

* Data Rates
> HSDPA: Max.14.4Mbps (DL)
> HSUPA: Max.5.76Mbps (UL)
> WCDMA: Max.384Kbps (DL)/Max.384Kbps (UL)
> EDGE: Max.236.8Kbps (DL/UL)
> GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
> GSM: 14.4Kbps (DL)/14.4Kbps (UL)
> CSD: Max.14.4Kbps (DL)/ Max. 14.4Kbps (UL)

* Voice
> Speech Codec Modes: HR, FR, EFR, AMR, AMR-WB
> Echo Arithmetic: Echo Cancellation, Noise Reduction

> Point-to-point MO and MT
> SMS Cell Broadcast
> Text and PDU Mode

* Interfaces
> UART x 1
> (U)SIM × 1 : 1.8V/ 3.0V (U)SIM Card
> USB × 1 : USB 2.0 with High Speed up to 480Mbps
> PCM and I2C Interfaces: Digital Audio through PCM Interface (Optional)
> LED_WWAN# for Network Status Indication
> W_DISABLE# for RF Function Control
> PERST# for Module Resetting

* Enhanced Features
> eCall
> Firmware Update: via USB or UART Interface
> QuecFile: File System Access and Management

* GNSS Features
> Qualcomm gpsOne Gen8 GNSS Receiver
> Support XTRA Technology
> Accuracy <2.5m CEP-50 @Open Sky

- TTFF @-130dBm with XTRA: Cold/Warm/Hot Start: Typ. 22s/3s/2s
- TTFF @-130dBm without XTRA: Cold/Warm/Hot Start: Typ. 32s/29s/2.5s
- Sensitivity with LNA:
> Cold Start/Reacquisition/Tracking: -147dBm/-159dBm/-161dBm
> Power Saving Mode: DPO Mode
> Dedicated GNSS AT Commands

* Software Features

- USB Driver:
> Windows 7/8/8.1/10,
> Windows CE 5.0/6.0/7.0*,
> Linux 2.6/3.x/4.1~4.14
> Android 4.x/5.x/6.x/7.x

- RIL Driver: Android 4.x/5.x/6.x/7.x/8.x

- NDIS Driver: Windows 7/8/8.1/10

- Gobinet Driver: Linux 2.6/3.x/4.1~4.14

- QMI_WWAN Driver: Linux 3.x(3.4 or later)/4.1~4.14


* General Features

> Extended Temperature: -40°C ~ +85°C
> Dimensions: 30.0mm × 50.95mm × 4.9mm
> Weight: Approx. 9.8g
> Supply Voltage: 3.0V~3.6V, 3.3V Typ.
> (U)SIM Card Connector (Optional)
> HSPA+: Release 5/6 (UL category 6, DL category 10)
> GPRS/EDGE: Multi-slot Class 12 (10 by Default)
> WCDMA: Release 99
> GSM: Release 99/4
> 3GPP TS 27.007, 3GPP TS 27.005 and Quectel Enhanced AT Commands

* Approvals
> RoHS Compliant
> GCF/Vodafone (Global)
> CE (Europe)
> FCC/PTCRB/AT&T (North America)
> RCM (Australia & New Zealand)
> IC (Canada)
