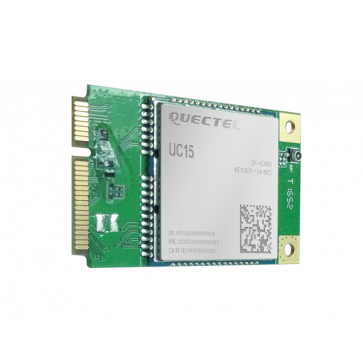

Quectel UC15 Mini PCIe Module
* Quectel UMTS/HSDPA Module
* HSDPA up to 3.6Mbps
* Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage
* USB 2.0 with High Speed up to 480Mbps
* Echo Cancellation, Noise Reduction
Availability: In stock
Product Downloads
Quectel UC15 Mini PCIe is a UMTS/HSDPA module featuring a maximum data rate of 3.6Mbps downlink and 384Kbps uplink. It is designed to provide customers with global network coverage on the connectivity of HSDPA/WCDMA, and it is also fully backward compatible with existing EDGE and GSM/GPRS networks through multi-band combination of dual-band WCDMA and dual-band GSM.
The compact profile of 51.0mm × 30.0mm × 4.9mm in standard Mini PCIe form factor and high integration level enable integrators and developers to easily design their applications and truly benefit from low power consumption and convenient Plug and Play Function.
With an extended temperature range from -40°C up to 80°C, UC15 Mini PCIe functions reliably in extreme environments for use outdoors or inside at sites that lack of cooling and heating systems.
A rich set of Internet protocols, industry-standard interfaces (USB/UART/PCM/Analog Audio/LED_WWAN) and abundant functions (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of commercial and industrial M2M applications.
Key Benefits
* Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage
* Standard Mini PCIe form factor maximizes the convenience for customers to design and use
* High-quality data and image transmission even in harsh environment
* Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
* Robust mounting and interfaces
Quectel UC15 Mini PCIe 3G module Specifications:
Quectel UC15 Mini PCIe sub-models
* Quectel UC15-E Mini PCIe(Variant for Europe):
> 3G 900/2100MHz @UMTS
> 2G 900/1800MHz @GSM
* Data Rates
> HSDPA: Max.3.6Mbps (DL)
> UMTS: Max.384Kbps (DL)/Max.384Kbps (UL)
> EDGE: Max.236.8Kbps (DL)
> GPRS: Max. 85.6Kbps (DL)/Max. 85.6Kbps (UL)
> GSM: 14.4Kbps (DL)/14.4Kbps (UL)
> WCDMA: 64Kbps (DL)/64Kbps (UL)
* Voice
> Speech Codec Modes: HR, FR, EFR, AMR, AMR-WB
> Echo Arithmetic: Echo Cancellation, Noise Reduction
* SMS
> Point-to-point MO and MT
> SMS Cell Broadcast
> Text and PDU Mode
* Interfaces
> USB: 2.0 High Speed
> Analog Audio: One Analog Input and one Output Channel (Optional)
> Digital Audio: PCM (Optional)
> UART: 1×Full Functions
> USIM: 1.8V/ 3.0V (U)SIM Card Interface
> LED_WWAN#: Network Status Indication
> W_DISABLE#: Disable RF Function
> PERST#: Reset Function
> Antenna: 1×RF connector
* Enhanced Features
> eCall
> Firmware Update: via USB or UART Interface
> QuecFile: File System Access and Management
> FOTA: QuecFOTA, DFOTA
* Software Features
- USB Driver:
> Windows XP, Windows Vista,
> Windows 7/8/8.1/10, Windows CE 5.0/6.0/7.0*,
> Linux 2.6/3.x/4.1, Android 4.x/5.x/6.0
- RIL Driver: Android 4.x/5.x/6.0
- Protocols: TCP/UDP/PPP/FTP/HTTP/SMTP/MMS/SSL/PING/NITZ/NTP/HTTPS/SMTPS
* General Features
> Extended Temperature: -40°C ~ +80°C
> Dimensions: 51.0×30.0×4.9mm
> Weight: Approx. 9.3g
> Supply Voltage: 3.0V~3.6V, 3.3V Typ.
> 3GPP TS 27.007, 3GPP TS 27.005 and Quectel Enhanced AT Commands
* Approvals: CE/GCF/ NCC
