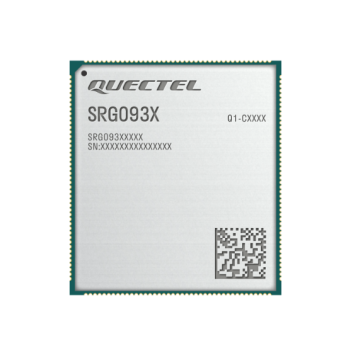

Quectel SRG093X NXP i.MX 93 SoM/AIoT module

Quectel SRG093X series is an upgraded, high-performance System-on-Module (SoM) / AIoT module built around the NXP i.MX 93 applications processor. It delivers advanced edge intelligence, deep learning capabilities, and richer multimedia support compared to the SRG091X.

Quectel SRG093X SoM/AIoT module Specifications

Core Processing & Memory
------------------------
- Processor (SoC): Integrated NXP i.MX 93 (MIMX9332CVVXMAC)
- Primary CPU Architecture: Dual-core 64-bit Arm Cortex-A55 up to 1.7 GHz
- Real-Time MCU: Dedicated Arm Cortex-M33 core up to 250 MHz
- Neural Processing Unit (NPU): Integrated 0.5 TOPS Arm Ethos-U65 microNPU
- Cache: 64 KB L2 cache, 256 KB L3 cache
- Memory (RAM): 1 GB LPDDR4X (Scalable up to 2 GB)
- Storage (Flash): 16 GB eMMC (Scalable up to 256 GB

Wireless Connectivity (Nxp Iw610g)
----------------------------------
- Wireless Chipset: Integrated NXP IW610G tri-radio subsystem
- Wi-Fi: Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) dual-band (2.4 GHz & 5 GHz)
- Bluetooth: Bluetooth 5.4
- 802.15.4 Mesh: Integrated hardware support for Thread, Zigbee, and Matter

Multimedia & High-Speed Interfaces
----------------------------------
- Display Interfaces: LVDS, MIPI-DSI, and 24-bit parallel RGB
- Graphics Acceleration: Display PXP engine for hardware-accelerated 2D graphics
- Camera Interface: 2M Image Sensor Interface (ISI), resolutions up to 2K
- Audio: Integrated S/PDIF interface support

Peripheral Interfaces
---------------------
- High-Speed Networking: Dual 1Gbps Ethernet ports (RGMII)
- Peripheral I/O: 2x USB 2.0, 2x CAN-FD, SDIO 3.0, UARTs, SPI, I2C, I3C, and ADC
- FlexIO: Integrated 32-pin FlexIO interface for customizable digital peripherals

Physical & Environmental
------------------------
- Form Factor Package: LGA + LCC package
- Dimensions: 46.0 mm x 41.5 mm x 3.0 mm
- Operating Temperature: Industrial range (-40 deg C to +85 deg C)
- Software Ecosystem: Out-of-the-box support for Linux, Zephyr, and Qt
