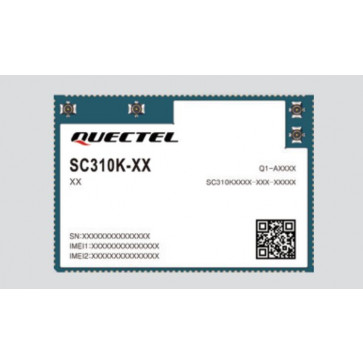

Quectel SC310K 4G LTE Cat4 LCC + LGA Smart Module
* Quectel LTE Cat4 Smart Module
* Form factor: LCC + LGA package
* Variant models: Quectel SC310K-CE
* Compliant with 3GPP E-UTRA R12
* WLAN: 2.4G/5GHz, 802.11a/b/g/n/ac
* GNSS: GPS/GLONASS or GPS/BeiDou
* LTE data speeds: DL 150Mbps, UL 50Mbps
* Firmware update via USB or FOTA
Availability: Out of stock
Quectel SC310K 4G Module Specifications:
* Product type: 4G Smart Module
* Chipset:
* LTE Category: LTE Cat4, compliant with 3GPP E-UTRA R12
* Form factor: LCC + LGA
* Dimensions: 40.5 × 64.6 × 3.1mm
* Frequency Bands:
Quectel SC310K-CE
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B38/B39/B40/B41
- WCDMA: B1/B8
- GSM: 900/1800MHz
* CPU: Unisoc UIS8581A, Octa-core ARM Cortex-A55 processor
* GPU: PowerVR Fentale GE8322
* Inventory: 32GB eMMC+2GB LPDDR4X; 64GB eMMC+4GB LPDDR4X
* OS: Android 10
* Power supply: 3.5V~4.2V, 3.8V Typ.
* Weight:18.04g
* Temperature range:
- -20°C ~ +75°C (Operation Temperature)
* Data Transmission Rates:
LTE Cat.4
- LTE-FDD: Max. 150Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 130Mbps (DL)/ Max. 30Mbps (UL)
UMTS
- DC-HSDPA: Max. 42Mbps (DL)
- DC-HSUPA: Max. 11.2Mbps (UL)
- WCDMA: Max. 384Kbps (DL/UL)
GSM
- EDGE: Max. 296Kbps (DL)/236Kbps(UL)
- GPRS: Max. 107Kbps (DL)/85.6Kbps(UL)
* Interfaces:
- Display: 4-lane MIPI, FHD(1920 X 1080)@60FPS
- Camera: support 2 x 4-lane MIPI, Max 1.5Gbps/lane
- Touchscree: capacitive
- Audio:
* Support 1 analog output: earphone
* Support 2 analog input: MIC1, MIC2
- Video:
* Encoding: 1080p@30fps h264/h265/vp8
* Decoding : 1080p@30fps h264/h265/vp8/vp9/mp4/h263
- USB x 2, USB1 support USB 2.0, but not Hub, USB2 support host-mode only, and Hub
- I2C x 4
- (U)SIM x 2, 1.8V/2.95V(U)SIM
- UART x 3(One for test only)
- SD x 1(SD 3.0)
- PWRKEY: VBAT
- SPI: x 2
- ADC x 1
- I2S: x 1
- GPIO x 25
- PWM x 1
- Motor Drive Interface: N/A
- Flashlight: N/A
- LED: N/A
- Antenna: Main antenna, Diversity antenna, GNSS antenna, BT/WiFi antenna interface
* Enhanced Features
- Bluetooth: BT 1.2/2.1+EDR/4.2/5.0
- WLAN: 2.4/5GHz, 802.11a/b/g/n/ac
- GNSS: GPS/GLONASS or GPS/BeiDou
- Charing function: N/A
- Dual screen display: N/A
- Dual-SIM/Dual standby: YES
- Firmware update: USB/OTA
* Certifications/Approvals: CCC
* Applications: Advertisements, Vehicle teminals, Tablet PCs, Robots etc...
