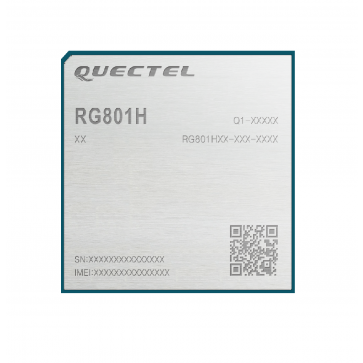

Quectel RG801H-EA 5G Sub-6GHz LGA Module

Quectel RG801H-EA is a 5G sub-6GHz LGA module measuring 51.5mm × 51.0mm × 2.75mm which meets the 3GPP Release 15 specification and is optimized for IoT/M2M applications in EU and APAC. It supports both standalone (SA) and non-standalone (NSA) modes and it is backward-compatible with 4G and 3G networks, and delivers maximum downlink rates of 2.3Gbps and maximum uplink rates of 1200Mbps.

Quectel RG801H-EA 5G Module Specifications：

* Product type: 5G Module

* 5G: Sub-6GHz

* Form factor: LGA

* Dimensions: 51.5mm × 51.0mm × 2.75mm

* Frequency Bands:
- 5G NR Bands: n1/n3/n28/n41/n77/n78/n79
- LTE-FDD: B1/B3/B5/B7/B8/B20/B28
- LTE-TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B5/B8

* Weight: 11g

* Temperature range:
- -30°C ~ +70°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Data Transmission:
- 5G SA Sub-6: Max. 2.1Gbps (DL)/ Max. 1200Mbps (UL)
- 5G NSA Sub-6: Max. 2.3Gbps (DL)/ Max. 600Mbps (UL)
- LTE-FDD: Max. 1.6Gbps (DL)/ Max. 150Mbps (UL)
- WCDMA: Max. 42Mbps (DL)/ Max. 5.76Mbps (UL)

* Protocols: TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HTTPS/FTPS/SSL/FILE/MQTT/MMS/SMTP/SMTPS/PAP/CHAP

* Interfaces:
- (U)SIM × 2, 1.8V/ 3.0V
- UART × 2
- USB 1.1/2.0/3.0/3.1
- PCle: PCIe × 2, PCIe Gen3 × 2 Lane/PCIe Gen3 × 1 Lane
- RGMII x 1
- PCM x 1
- I2C × 1
- SPI x 1
- ADC × 2
- SD Card x 1
- Antenna: Main, Diversity

* Enhanced Features
- MIMO 4 × 4 DL
- VoLTE: Optional
- DFOTA Delta Firmware over the Air

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Certifications: GCF/CE
