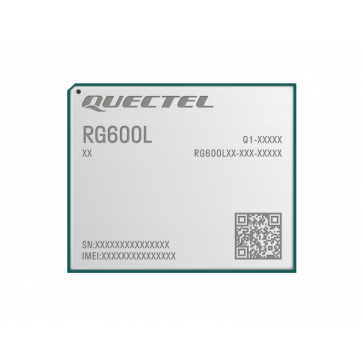

Quectel RG600L-EU 5G Sub-6GHz LGA module

Quectel RG600L-EU is a 5G Sub-6GHz LGA module optimized specially for IoT and eMBB applications. By adopting the 3GPP Rel-15 technology, the module supports both 5G NSA and SA modes. The RG600L-EU is an industrial-grade module for industrial and commercial applications only.

Quectel RG600L-EU has built-in rich network protocols, integration of multiple industrial standard interfaces, and supports of multiple driver and software functions, and is integrated with network hardware accelerator and VPN hardware accelerator, which extend the applicability of the modules to a wide range of IoT and eMBB applications such as 5G wireless routers, CPE, MiFi, business routers, home gateways, etc.

Quectel RG600L-EU LGA 5G Module Specifications：

* Product type: 5G Module

* Chipset: Qualcomm Snapdragon

* Target Region：Brazil, EMEA, Oceania

* 5G: Sub-6GHz

* Form factor: LGA

* Dimensions: 44.0 x 53.0 x 2.95mm

* Frequency Bands:

Quectel RG600L-EUAA:
- 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28/B32
- LTE-TDD Bands: B38/B40/B41/B42/B43
- WCDMA Bands:B1/B5/B8

Quectel RG600L-EUAB:
- 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n77/n78
- LTE-FDD Bands: B1/B3/B5/B7/B8/B20/B28/B71
- LTE-TDD Bands: B38/B40/B41/B42/B43
- WCDMA Bands:B1/B5/B8

* Weight：16.56g

* Temperature range:
- -30°C ~ +70°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 4.67Gbps (DL)/ Max. 1.25Gbps (UL)
- 5G NSA Sub-6: Max. 4.67Gbps (DL)/ Max. 825Mbps (UL)
- LTE-FDD: Max. 1.6Gbps (DL)/ Max. 211Mbps (UL)
- WCDMA: Max. 42.2Mbps (DL)/ Max. 11.5Mbps (UL)

* SMS

* Protocols: HTTPS*/TCP*/UDP*/FTP*/HTTP*/PING*/FTPS/SSL/NTP

* Interfaces:
- (U)SIM × 2(Dual SIM single standby)
- UART x 3(including 1 Bluetooth UART)
- USB x 1(USB2.0/3.0)
- PCle: PCIe 3 × 4
- PCM
- I2C x 4
- SPI x 2
- GPIO x 70(Includes alternate function)
- ADC x 3
- Antenna: Cellular x 8

* Enhanced Features
- MIMO: 4 x 4 DL, UL 2 x 2
- Voice: Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: N/A
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>100μA@Power off
>6.5mA@Sleep, Typ.
>125mA@Idle(USB active)

* Software Features
- USB Serial Driver: Linux 3.18-6.5
- GNSS Driver: N/A
- RIL Driver: N/A
- NDIS Driver: N/A
- MBIM Driver: N/A
- Gobinet Driver: N/A
- QMI_WWAN Driver: N/A
- PCIe Driver: N/A

* Certifications/Approvals: GCF/CE/RCM

* Applications: 5G Wireless Router, CPE, MiFi, Indurstrial router, home gateway etc...
