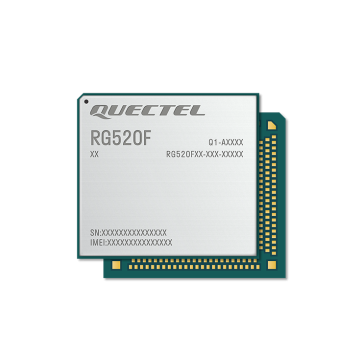

Quectel RG520F 5G Sub-6GHz LGA Module

Quectel's RG520F is a series of 5G Sub-6GHz LGA modules optimized specially for IoT and eMBB applications. Adopting the 3GPP Rel-16 technology, it supports both 5G NSA and SA modes with Option 3x/3a and Option 2 network architectures, which makes it backwards compatible with 4G/ 3G network. It is pin-to-pin compatible with Quectel’s 5G module RG50xQ series and LTE-A Cat 12 module EG512R-EA.

Quectel RG520F series is an industrial-grade module for industrial and commercial applications only and can meet various customer application demands for high speed, large capacity, low latency, and high reliability.

Quectel RG520F series contains three variants: RG520F-EB, RG520F-EU and RG520F-NA. It supports Qualcomm IZat location technology Gen 9VT (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0/3.0/3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 7/8/8.1/10/11, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as business routers, home gateway, STB, industrial laptops, consumer laptops, video transmission, industrial PDAs, and rugged tablet PCs.

Quectel RG520F 5G Module Specifications:

* Product type: 5G Sub-6GHz Module

* Chipset: Qualcomm Snapdragon SDX65

* Form factor: LGA

* Dimensions: 41.0 × 44.0 × 2.75mm

* Frequency Bands:

Variant Models:

Quectel RG520F-EU
--------------------------------------------------------------------------
- Target Market: EMEA/ APAC/ Brazil
- 3GPP Release 16 NSA/SA operation, Sub-6 GHz, mmWave
- 5G Sub-6 GHz (NSA/SA) Bands: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78
- LTE-FDD: B1/3/5/7/8/20/28/32;
- LTE-TDD: B38/40/41/42/43;
- WCDMA Band: B1/ 5/ 8

Quectel RG520F-EB
--------------------------------------------------------------------------
- Target Market: EMEA/ APAC/ Brazil
- 3GPP Release 16 NSA/SA operation, Sub-6 GHz, mmWave
- 5G Sub-6 GHz (NSA/SA) Bands: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78;
- LTE-FDD: B1/3/5/7/8/20/28/32/71;
- LTE-TDD: B38/40/41/42/43;
- WCDMA Band: B1/ 5/ 8

Quectel RG520F-NA
--------------------------------------------------------------------------
- Target Market: North America
- 3GPP Release 16 NSA/SA operation, Sub-6 GHz, mmWave
- 5G Sub-6 GHz (NSA/SA) Bands: 2/5/7/12/13/14/25/26/29/30/38/41/48/66/70/71/77/78;
- LTE-FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71;
- LTE-TDD: B38/41/42/43/48; LAA: B46

* Weight：11g

* Temperature range:
- -30°C ~ +75°C (Operating Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 4.0Gbps (DL)/ Max. 900Mbps (UL)
- 5G NSA Sub-6: Max. 4.0Gbps (DL)/ Max. 550Mbps (UL)
- 4G LTE-FDD: Max. 2.0Gbps (DL)/ Max. 200Mbps (UL)
- 3G WCDMA: Max. 42Mbps (DL)/ Max. 5.76Mbps (UL)

* SMS

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2, 1.8V/2.95V
- UART x 3
- USB 2.0/3.0/3.1
- PCle: Gen3 x 2Lane
- I2C x 1
- ADC x 2
- Antenna:
* Cellular: 4 + 2(optional), GNSS x 1(RG520F-EU)
* Cellular: 4, GNSS x 1(RG520F-NA)

* Enhanced Features
- MIMO: Sub-6 (4 x 4 DL, UL 2 x 2),
- Voice: optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/Beidou/Galileo/QZSS
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.3V~4.4V, 3.8V Typ.
- Power Consumption: 0.142 mA @ power off, 2.6 mA @ sleep (typ.)

* Software Features
- USB Serial Driver
> Windows 8.1/10/11,
> Linux 2.6 ~ 6.7, Android 4.x ~ 13
> Android 4.x~13.x
- GNSS Driver: Android 4.x~13.x
- MBIM Driver: Windows 8.1/10/11,, Linux 3.18-6.7
- Gobinet Driver: Linux 2.6 ~ 6.7
- QMI_WWAN Driver: Linux 3.4 ~ 6.7
- PCIe Driver: Windows 10/11, Linux 3.10 ~ 6.7

* Certifications/Approvals: CE/RCM/UKCA/GCF/FCC/PTCRB

* Applications: Industrial Router, Indurstrial PDA, Rugged Tablet PCs and digital signage etc...
