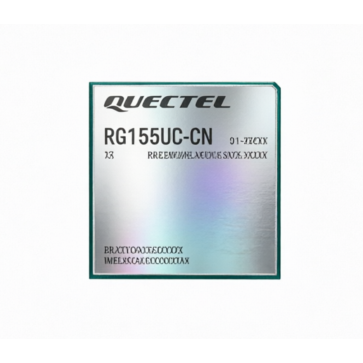

Quectel RG155UC-CN 5G Module

Quectel RG155UC-CN is a next-generation 5G RedCap (Reduced Capability) module designed specifically for the Chinese market. Officially debuted around MWC 2026, it is built on the UNISOC V527 platform.

This module represents the "next wave" of 5G adoption, focusing on extreme miniaturization and cost-efficiency for devices that don't need the multi-gigabit speeds of flagship 5G but require the low latency and longevity of 5G networks.

Quectel RG155UC-CN 5G Module Specifications:

* Network Standard: 5G RedCap (3GPP Release 17)

* Chipset: UNISOC V527 (Optimized for lightweight IoT)

* Data Rates: Downlink: ~220 Mbps / Uplink: ~100-120 Mbps

* Form Factor: Ultra-Compact LGA (46% smaller volume than traditional 5G modules)

* Dimensions: Significant reduction in thickness (~17% thinner than previous gens)

* Power Consumption: -20% compared to first-gen 5G modules

* Bands: Optimized for China (N1, N3, N5, N8, N28, N41, N78, N79)

Core Advantages
----------------------------------------------
* Extreme Miniaturization: The "UC" in the name highlights its ultra-compact design. By reducing the volume by nearly half (46%) compared to standard 5G LGA modules, Quectel has made it possible to fit 5G into devices that were previously restricted to 4G or even 2G, such as sleek smartwatches or tiny industrial sensors.

* Cost-Performance "Sweet Spot": Since it is a RedCap module, it strips away the expensive and power-hungry components required for 10Gbps speeds. This makes the RG155UC-CN much more affordable, facilitating the "mass popularization" of 5G in the Chinese industrial and consumer sectors.

* Release 17 Features: Despite being "lightweight," it still supports high-end 5G features like 5G LAN, Network Slicing, and URLLC (Ultra-Reliable Low-Latency Communication), which are essential for the "Industrial 4.0" movement in China.

* Enhanced Battery Life: The module is designed with a "Dual Carbon" philosophy, utilizing low-power sleep modes and efficient processing to extend the life of battery-operated terminals by over 20%.

Primary Use Cases in China
----------------------------------------------
* Smart Wearables: High-end smartwatches and health monitoring bracelets that need independent 5G connectivity without being bulky.

* Industrial Sensors: Small-scale sensors for factory automation (predictive maintenance, environmental monitoring) that require 5G's low latency.

* Consumer Tablets & Laptops: Entry-level 5G-connected tablets and educational devices for the "Always Connected" PC market.

* Smart Grid Terminals: Compact monitoring units for power lines and water systems where 5G's deep coverage (via the N28 700MHz band) is a major asset.
