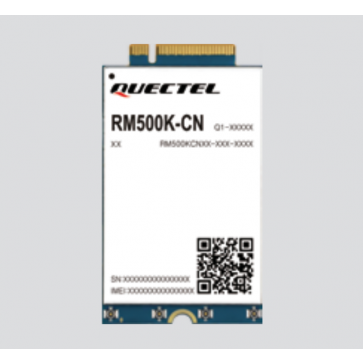

Quectel RM500K-CN M.2 5G NR Module

Quectel RM500K-CN M.2 5G Module Specifications：

* Product type: 5G Wireless Module

* Chipset: Qualcomm Snapdragon

* 5G: Sub-6GHz

* Form factor: M.2

* Dimensions: 52.0× 30.0 × 2.3mm

* Frequency Bands:
- 5G NR Bands: n1/n28/n41/n78/n79
- LTE-FDD Bands: B1/B3/B5/B8
- LTE-TDD Bands: B34/B39/B40/B41
- WCDMA: B1/B8

* Target Market: China

* Weight: 5.55g

* Temperature range:
- -20°C ~ +60°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2Gbps (DL)/ Max. 1Gbps (UL)
- 5G NSA Sub-6: Max. 2.2Gbps (DL)/ Max. 575Mbps (UL)

* SMS

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2, 1.8V/3.0V
- USB 2.0/3.0/3.1
- PCle: PCIe Gen3 x 1 Lane
- PCM
- GPIO
- Reset_N
- Antenna: Main antenna, Diversity antenna, GNSS antenna

* Enhanced Features
- MIMO: 4 x 4 DL
- Audio: N/A
- VoLTE：N/A
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/Beidou/Galileo
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.135V~4.4V, 3.7V Typ.
- Power Consumption
>95μA @Power off
>4mA @Sleep, Typ.
>TBD @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6-5.14,
> Android Android 4.x/5.x/6.x/7.x/8.x/9.x/10.x/11.x
- GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10.x/11.x
- RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10.x/11.x
- NDIS Driver: N/A
- MBIM Driver: Windows 7/8/8.1/10, Linux 3.18-5.10
- Gobinet Driver: N/A
- QMI_WWAN Driver: N/A
- PCIe Driver: Linux 2.6~5.14

* Certifications/Approvals: CCC/SRRC/NAL/CMCC

* Carriers: China Mobile, China Unicom, China Telecom

* Applications: Industrial Router, Home gateway, Set-top box, Indurstrial PDA, Rugged Tablet PCs etc...
