Quectel L80 GPS Module

* Quectel GPS Module


* Ultra low power consumption in tracking mode


* Support short circuit protection and antenna detection


* Built-in LNA for better sensitivity


* Anti-Jamming, Multi-tone Active Interference Canceller


* 66 acquisition channels, 22 tracking channels

Sign up for price alert

Availability: In stock

$39.00
  • Buy 5 for $35.00 each and save 11%
  • Buy 10 for $32.00 each and save 18%
  • Buy 15 for $30.00 each and save 24%

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

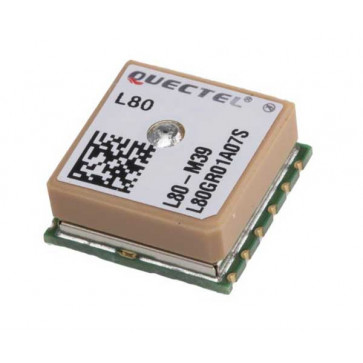

Quectel L80 is an ultra-compact GPS POT (Patch on Top) module with an embedded 15.0mm × 15.0mm × 4.0mm patch antenna. This space-saving design makes L80 the perfect module for the miniature devices. Adopted by LCC package and integrated with a patch antenna, Quectel L80 GPS module has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, Quectel L80 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L80 module can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal RAM memory, so L80 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, Quectel L80 GPS module can adaptively adjust the on/off time to achieve the balance between positioning accuracy and power consumption according to the environmental and motion conditions.

Quectel L80 module supports automatic antenna switching function. It can achieve the switching between an internal patch antenna and an external active antenna. Moreover, it keeps positioning during the switching process.

The Fitness Low Power (FLP) feature provides low power GPS solution for fitness application. It is an optimized solution for wearable, fitness and tracking devices and only costs about 50% power consumption of normal mode.

With its compact design, high precision and sensitivity, Quectel L80 GPS module is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA, especially suitable for special applications, like GPS mouse and OBD.

Key Benefits

* Embedded patch antenna: 15.0mm × 15.0mm × 4.0mm

* Extremely compact size: 16.0mm × 16.0mm × 6.45mm

* Automatic antenna switching function

* Support short circuit protection and antenna detection

* Built-in LNA for better sensitivity

* EASY™, an advanced AGPS technology without external memory

* Ultra low power consumption in tracking mode, 20mA

* AlwaysLocate™, an intelligent controller of periodic mode

* LOCUS, an embedded logger solution with no need of host and external flash

* High sensitivity, -165dBm @Tracking, -148dBm @Acquisition

* 66 acquisition channels, 22 tracking channels

* FLP mode, about 50% power consumption of normal mode

* Balloon mode, for high altitude up to 80km

* Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

* Anti-Jamming, Multi-tone Active Interference Canceller

* PPS VS. NMEA can be used for time service

* Support SDK command developed by Quectel


Quectel L80 GPS Module Specifications:


* GPS Features

- L1 Band Receiver (1575.42MHz):
> Channel: 22(Tracking)/ 66 (Acquisition)
> C/A Code
> SBAS, WAAS, EGNOS, MSAS, GAGAN

- Horizontal Position Accuracy:
> Autonomous: <2.5m CEP


- Velocity Accuracy:
> Without Aid: <0.1m/s

- Acceleration Accuracy:
> Without Aid: <0.1m/s2

- Timing Accuracy:
> 1PPS Out: 10ns

- Reacquisition Time: <1s

- TTFF @-130dBm with EASY:
> Cold Start: <15s
> Warm Start: <5s
> Hot Start: <1s

- TTFF @-130dBm without EASY:
> Cold Start: <35s
> Warm Start: <30s
> Hot Start: <1s

- Sensitivity:
> Acquisition: -148dBm
> Tracking: -165dBm
> Reacquisition: -160dBm

- Dynamic Performance:
> Maximum Altitude: Max. 18000m
> Maximum Velocity: Max. 515m/s
> Maximum Acceleration: 4G


* Interfaces

- Serial Interfaces:
> UART: Adjustable 4800bps~115200bps
> Default: 9600bps

- Update Rate:
> 1Hz (Default), up to 10Hz

- I/O Voltage:
> 2.7V~2.9V


- Protocols:
> NMEA 0183
> PMTK


* General Features

- Temperature Range: -40°C ~ +85°C

- Dimensions:16.0mm × 16.0mm × 6.45mm

- Weight: Approx. 6.0g

- Power Supply: 3.0V~4.3V

- Power Acquisition: 25mA

- Power Tracking: 20mA

- Power Saving:

> 3mA@AlwaysLocate™(Note1)
> 7uA @Backup Mode
> 1mA@Standby Mode
> 11mA@FLP Mode
> Periodic Mode
