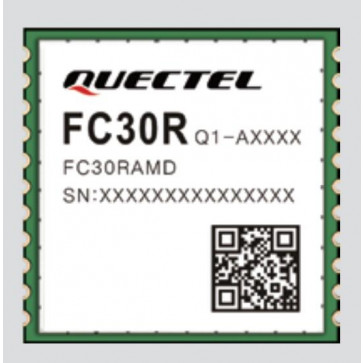

Quectel FC30R Wi-Fi Module

Quectel FC30R Wi-Fi Module Specifications:

* Dimensions (mm): 12.0 × 12.0 × 2.1

* Operating Temperature: -30°C ~ +85°C

* Weight (approx.): 0.57g

* Function: Wi-Fi 2.4GHz

* WLAN Standard: IEEE 802.11b/g/n

* BT Standard: n/a

* Modulation Mode: BPSK/ QPSK/ CCK/ 16QAM/ 64QAM

* Encryption Mode: TKIP/ AES/ WPA-PSK/ WPA2-PSK

* AP (Max Access Point): 16

* Operator Mode: AP/ STA

* I/O Interfaces
- PCIe 3.0: n/a
- SDIO: 1(SDIO 3.0)
- UART: n/a
- PCM: n/a
- Antenna: 1 (Wi-Fi & BT Antenna)

* Supply Voltage Range:
- 3.0 ~3 .6V, 3.3V Typ.
- 1.71 ~ 1.89V, 1.8V Typ.

* Power Consumption:
-0μA @OFF State, 3.3V WLAN Supply Voltage 554μA @OFF State,1.8V I/O Pins Supply Voltage
- 66mA @On State(no connection), 3.3V
- WLAN Supply Voltage: 6.5mA @On State(no connection),1.8V I/O Pins Supply Voltage

* Data Transmission
- 802.11a: N/A
- 802.11b: Max. 11Mbps
- 802.11g: Max. 54Mbps
- 802.11n: Max. 150Mbps
- 802.11ac: N/A
- 802.11ax: N/A
- BLE: Max: N/A

* Recommended Applications: Telematics, Smart Metering, Mobile POS Terminal, Gateway, Safety, Tracking and Tracing, Remote Maintenace and Control, Networking, Mobile Computing, Healthcare, etc.
