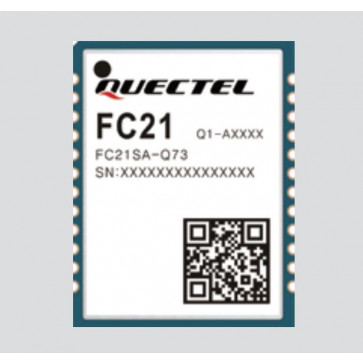

Quectel FC21 Wi-Fi & BT Module

Quectel FC21 Wi-Fi & BT Module Specifications:

* Dimensions (mm): 16.6 × 13.0 × 2.1

* Operating Temperature: -40°C ~ +85°C

* Weight (approx.): TBD

* Function: Wi-Fi 2.4GHz + 5GHz & BT 5.0

* WLAN Standard: IEEE 802.11a/b/g/n/ac

* BT Standard: BT 5.0

* Modulation Mode: BPSK/ QPSK/ CCK/ 16QAM/ 64QAM/ 256QAM

* Encryption Mode: WEP/ TKIP/ AES/ WPA-PSK/ WPA2-PSK

* AP (Max Access Point): 16

* Operator Mode: AP/ STA

* I/O Interfaces
- PCIe 3.0: n/a
- SDIO: 1(SDIO 3.0)
- UART: 1
- PCM: 1
- Antenna: 1 (Wi-Fi & BT Antenna)

* Supply Voltage Range:
- 3.14 ~3 .46V, 3.3V Typ.
- 1.71 ~ 1.89V, 1.8V Typ.

* Power Consumption: TBD

* Data Transmission
- 802.11a: Max. 54Mbps
- 802.11b: Max. 11Mbps
- 802.11g: Max. 54Mbps
- 802.11n: Max. 150Mbps
- 802.11ac: Max. 433Mbps
- 802.11ax: N/A
- BLE: Max. 1Mbps

* Recommended Applications: Telematics, Smart Metering, Mobile POS Terminal, Gateway, Safety, Tracking and Tracing, Remote Maintenace and Control, Networking, Mobile Computing, Healthcare, etc.
