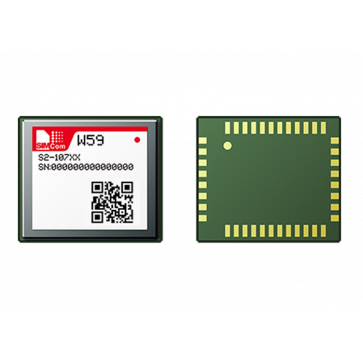

SIMCOM W59 Wi-Fi & BT Module

SIMCOM W59 is a small, low-power, low-cost Wi-Fi & BT module based on Qualcomm QCA-6574A-3 chipset. The module can be used in car networking, wireless routing, and other wireless terminals. The module conforms to IEEE Standard 802.11a/b/g/n/ac. The module is integrated with the baseband, PA and 2.4G/5G RF transceivers, and supports data communication between SIMCom LTE CAT-4 module SIM7800 through SDIO3.0 interface.

SIMCOM W59 Module Specifications:

* Form factor: LCC Package

* Support BT 3.0 and BLE 4.2

* Frequency band: 2.412 ~ 2.484 GHz and 5.17~5.825GHz

* Supply Voltage Range: 3.2V~ 3.4V , 3.3V Typ.

* Temperature Range: -40℃ to +85℃

* Dimension: 16 *18.3*2.3 mm

* Weight: 1.2g

* WLAN Standard: IEEE 802.11a/b/g/n/ac

* Modulation Mode: DSSS,CCK, OFDM,BPSK,QPSK,16QAM,64QAM,256QAM

* Encryption Mode: WEP,TKIP,AES,WPA-PSK,WPA2-PSK

* AP (Max Access Point): 30

* Operator Mode: AP, STA

* BT Protocol: SPP (BT 3.0), GATT (BLE 4.2)

* Max Date Rate
- 802.11b： 11Mbps
- 802.11g： 54Mbps
- 802.11n_HT20： 72.2Mbps
- 802.11n_HT40： 150Mbps
- 802.11ac_HT20: 86.7Mbps
- 802.11ac_HT40: 200Mbps
- 802.11ac_HT80: 433.3Mbps
- BT 4.2：TBD

* Transmitting Power
- 802.11b/11Mbps： TBD
- 802.11g/54Mbps： TBD
- 802.11n_HT20/72.2Mbps： TBD
- 802.11n_HT40/150Mbps： TBD
- 802.11ac_HT20/86.7Mbps: TBD
- 802.11ac_HT40/200Mbps: TBD
- 802.11ac_HT80/433.3Mbps: TBD
- BT 4.1/24Mbps: TBD

* Rx Sensitivity
- 802.11b/11Mbps： TBD
- 802.11g/54Mbps： TBD
- 802.11n_HT20/72.2Mbps： TBD
- 802.11n_HT40/150Mbps： TBD
- 802.11ac_HT20/86.7Mbps: TBD
- 802.11ac_HT40/200Mbps: TBD
- 802.11ac_HT80/433.3Mbps: TBD
- BT 4.1/24Mbps: TBD

* Interfaces
- SDIO 3.0
- UART
- LTE coexistence
- BT_EN
- WLAN_EN
- WiFi & BT Antenna
