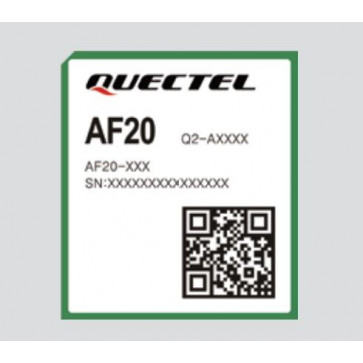

Quectel AF20 Wi-Fi & BT Module
Quectel AF20 Wi-Fi & BT Module
Availability: In stock
$39.00
Details
Details
Quectel AF20 Wi-Fi & BT Module Specifications:
* Dimensions (mm): 17.2 × 15.2 × 2.26
* Operating Temperature: -40°C ~ +85°C
* Weight (approx.): 1.26g
* Function: Wi-Fi 2.4GHz + 5GHz & BT 5.0
* WLAN Standard: IEEE 802.11a/b/g/n/ac
* BT Standard: BT 5.0
* Modulation Mode: CCK/ BPSK/ QPSK/ 16QAM/ 64QAM/ 256QAM
* Encryption Mode: WEP/ TKIP/ AES/ WPA-PSK/ WPA2-PSK
* AP (Max Access Point): 16
* Operator Mode: AP/ STA
* I/O Interfaces
- PCIe 3.0: N/A
- SDIO: 1(SDIO 3.0)
- UART: 1
- PCM: 1
- Antenna: 1 (Wi-Fi & BT Antenna)
* Supply Voltage Range: 3.14 ~3 .46V, 3.3V Typ. 1.71 ~ 1.89V, 1.8V Typ.
* Power Consumption: TBD
* Data Transmission
- 802.11a: Max. 54Mbps
- 802.11b: Max. 11Mbps
- 802.11g: Max. 54Mbps
- 802.11n: Max. 150Mbps
- 802.11ac: Max. 433Mbps
- 802.11ax: N/A
- BLE: Max. 1Mbps
* Recommended Applications: Automotive
* Quectel AF20 can work with Quectel AG35 module to provide Wi-Fi/BT function.
