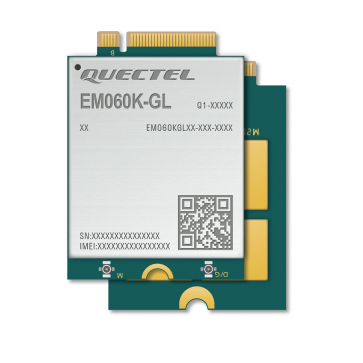

Quectel EM060K-GL 4G LTE Cat6 M.2 Module

Quectel EM060K-GL is an LTE-A Cat 6 module with an M.2 form factor measuring 42.0mm × 30.0mm × 2.3mm, developed in accordance with the 3GPP Release 12 specification, which supports a theoretical downlink peak data rate of 300Mbps and a theoretical uplink peak data rate of 50Mbps. The module is compatible with Quectel's LTE-A Cat 6 module EM06, Cat 12 modules EM12-G/EM121R-GL/EM120R-GL，Cat 16 module EM160R-GL and 5G modules RM500Q/RM502Q Series, which enables migration between different modules.

The EM060K-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology gpsOne 9HT (GPS, GLONASS, BeiDou/Compass and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows, Linux, Android/optional built-in eSIM) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.

Quectel EM060K-GL 4G LTE Cat6 Module Specifications：

* Product type: 4G LTE Module

* Category: LTE Cat6

* Chipset:

* Form factor: M.2 Package

* Dimensions: 42.0 × 30.0 × 2.3mm

* Frequency Bands:

- LTE-FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B292/B30/B321/B66/B71
- LTE-TDD Bands: B34/B38/B39/B40/B41/B42/B43/B461 (LAA)/B48 (CBRS)
- Up to 2 ×CA: B2+B2/B5/B12/B13/B293;B4+B4/B5/B12/B13/B293;B5+B5/B7/B25/B30/B66; B7+B7/B12/B26; B12+B12/B25/B30/B66; B13+B66; B25+B25/B26; B30+B29; B66+B29/B66; B41+B41
- WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

* Target Market: Global

* Weight：

* Temperature range:
- -25°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- LTE-FDD: Max. 300Mbps (DL)/ Max. 50Mbps (UL)
- LTE-TDD: Max. 226Mbps (DL)/ Max. 28Mbps (UL)
- DC-HSPA: Max 42Mbps(DL)/HSUPA: Max 5.76Mbps(UL)
- WCDMA: Max. 384Kbps (DL)/ Max. 384Kbps (UL)

* SMS

* Protocols: QMI/MBIM/NITZ/HTTP/HTTPS/FTP/LwM2M*/PING*

* Interfaces:
- USB 2.0
- PCM
- I2C x 1
- (U)SIM x 1/Built-in eSIM(optional)
- GPIO
- Reset_N
- PCIe: optional
- Antenna: Main antenna, Diversity antenna, GNSS antenna

* Enhanced Features
- MIMO: 2 x 2, 4 x 2, DL
- eCall: Emergency Service
- Audio
- VoLTE：Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/ GLONASS/ BeiDou/ Galileo/ QZSS
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.135V~4.4V, 3.7V Typ.
- Power Consumption
> TBD@Power off
> TBD@Sleep
> TBD@Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> WinCE 5.0/6.0/7.0
> Linux 2.6/3.x/4.1-4.14,
> Android 4.x/5.x/6.x/7.x/8.x
- GNSS driver: N/A
- RIL Driver: 4.x/5.x/6.x/7.x/8.x/9.x/10.x
- MBIM: Windows 10
- NDIS Driver: Windows 7/8/8.1/10
- Gobinet Driver: Linux 2.6/3.x/4.x/5.x
- QMI_WWAN Driver: Linux 3.x(3.4 or later)/4.x/5.x

* Certifications/Approvals:

* Applications: Consumer notebook, Industrial laptops, Industrial router, Industrial PDA, Rugged tablet PCs etc...
