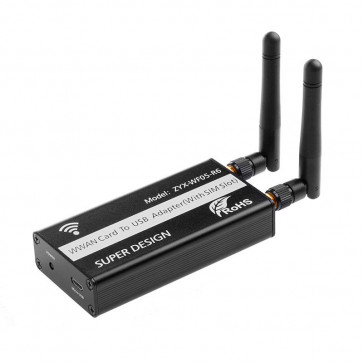

Mini PCIe Card to USB Adapter

The Mini PCI-E WWAN Card To USB Adapter is designed for desktop/Embedded system that converts 3G/4G wireless Mini PCIe Card to USB port. You can only insert your USB Bus type minicard such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port. However, it doesn't support PCI-E bus type minicard such as Wifi module
As standard SIM card is provided, you can connect to network carrier with SIM card. Please note that this adapter does not include mini PCI-E module and SIM Card. You need buy the PCIe WWAN card independently and get valid SIM card from your local network providers. This Mini PCIe to USB adapter is for dashborad, modification, test and unlocking applications.

The Mini PCIe card to USB Adapter Features:

* Doesn't support PCI-E bus type minicard such as Wifi module, only supports USB bus interface of Mini-Cards such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, and Mini-Card to desktop PC

* Easy installation & no driver required, but make sure you have installed the software drivers for your WWAN card.

* Support SIM 6pin/8pin card connector.

* No additional power required

* Supports Plug & Play and Hot-Swapping

* Supports any OS, like Windows XP/Win7/Win8/Win8.1/Win10, WinCE, Linux & iMAC etc

* Case dimension: (L*W*H)9.0*4.50*1.90cm/3.54"*1.77"*0.75"inch

* Quantity:1 Set

Please Note:

* Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

* And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

* Package include:

- 1 pcs x Mini PCI-E to USB Adapter
- 1 pcs x USB Cable
- 2 pcs x Antenna
- 1 pcs x Screw Driver
- 8 pcs x Screws
- 1 pcs x English user manual

This Mini PCI-E card to USB Adapter could be used with many 3G/4G LTE WWAN Module as below:

* Huawei Brand: MU609 PCIE, MU709S-2 PCIE, MU509-B PCIE, MC509-A PCIE, EM770, EM770J, EM770W, EM820U, EM820W, ME909u-521, ME909s-821, ME909S-120

* ZTE Brand: MF210, ME3760V2C, ME3760V2D, ME3760, MF210V2, AD3812, MC2716, ME3620, ME3630 PCIe

* MeiG Modules: SLM630 SLM630B SLM730 PCIE

* Longsung Modules: U8300 U8300W U8300C U9300W U9300C C5300V U7500E U6300V

* Yuga Modules: CLM920CN, CLM920CN3, CLM920

* Quectel Modules: UC15, UC20 PCIE，EC20 EC21  EC25 PCIE module

* SIMCOM Modules: SIM7100C SIM7100CE SIM7600C SIM7600CE SIM7600E PCIE modules

* And other Brands such as Sierra Wireless, Telit, Cinterion, Ericsson, Samsung, Datang, Hojy Wireless 52pin Mini PCIe modules.
