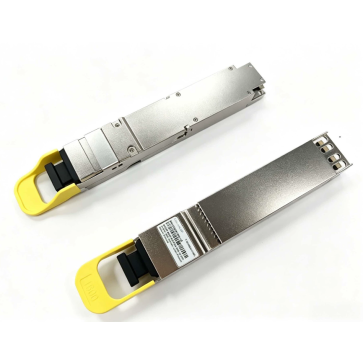

INNOLight T-OS16CNM-N00 1.6T OSFP Optical Transceiver Module

InnoLight T-OS16CNM-N00 is an ultra-high-speed 1.6T (1600 Gbps) OSFP optical transceiver module engineered for extreme-density AI compute fabrics (like NVIDIA InfiniBand ecosystems), high-performance computing (HPC) clusters, and next-generation cloud data centers.

InnoLight T-OS16CNM-N00 Optical Transceiver Specifications

Optical & Performance Specifications
----------------------------------------------------
* Maximum Data Rate: 1.6 Tbps (1600 Gbps aggregated)
* Optical Architecture: DR8 (8 channels x 212.5 Gbps PAM4)
* Modulation Type: PAM4 (Pulse Amplitude Modulation 4-Level)
* Center Wavelength: 1310 nm
* Fiber Media Type: Single-Mode Fiber (SMF)
* Maximum Cable Reach: Up to 500 meters (1640 feet)
* Error Correction: Requires Host-side System FEC

Electrical & Physical Hardware
----------------------------------------------------
* Module Form Factor: OSFP (with top-integrated thermal cooling fins)
* Electrical Interface: 8x212.5 Gbps or 16x106.25 Gbps electrical lanes
* Optical Connector Type: MTP/MPO-16 APC (or dual MPO configuration)
* Management Interface: I2C serial interface with full DDM telemetry
* Telemetry Monitored: Laser temperature, power tracking, voltage monitoring
* Power Consumption: Approximately 20W to 24W peak envelope
